Moxa DRP-A100-E4-6C-T | DRP-A100 DIN-Rail Industrial Computer, Atom x6425E, 8GB, 8x Serial

Authorised Moxa Partner

SKU:DRP-A100-E4-6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

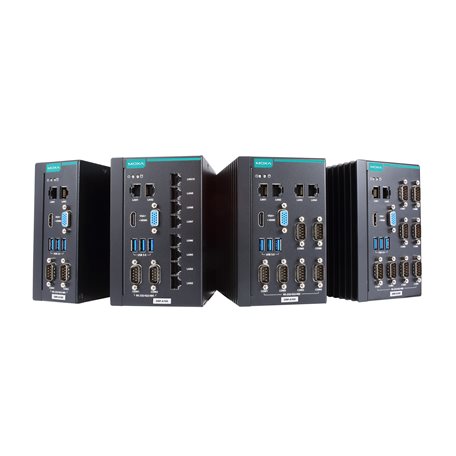

The Moxa DRP-A100-E4-6C-T is a fanless DIN-rail industrial computer built on a quad-core Intel Atom x6425E processor with 8 GB of pre-installed DDR4 memory. It provides 2 Gigabit LAN ports and 8 software-selectable RS-232/422/485 serial ports, and operates across a -30 to 60°C temperature range, making it well suited to field automation, protocol conversion and data acquisition in space-constrained cabinets.

Storage is handled by a CFast (SATA III) slot and an SD 3.0 slot, with a single SODIMM slot supporting up to 32 GB of memory. Video output is available over HDMI 2.0b and VGA, three USB 3.0 ports cover peripherals, and a built-in TPM 2.0 module helps secure the platform. It runs from a 12/24 VDC supply and supports Windows 11 and Windows 10 IoT editions as well as Debian, Ubuntu and RHEL drivers.

Features

- Fanless DIN-rail mountable design for reliable operation in field cabinets
- 8 software-selectable RS-232/422/485 serial ports for legacy device connectivity
- 2 Gigabit LAN ports for network and fieldbus integration
- Wide -30 to 60°C operating temperature range
- Dual-storage design with CFast and SD slots
- Built-in TPM 2.0 module secures the platform from unauthorised access
- DNV, Class I Division 2, ATEX and IECEx certified for demanding environments
- Battery-fastener cover with trap-door slot for easy battery swapping
- Communication interfaces on front and rear sides for easy access and expansion
- Compact size to fit most field applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6425E quad-core processor, 2 GHz, 1.5M cache
- 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Intel UHD Graphics
- 2 x 10/100/1000 Mbps RJ45 Ethernet ports
- 8 x RS-232/422/485 serial ports, DB9 male, software-selectable
- Serial baudrate 50 bps to 115.2 kbps
- 3 x USB 3.0 Type-A
- HDMI 2.0b and VGA video output
- 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0, SDHC/SDXC)
- TPM 2.0
- 12/24 VDC input via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Metal housing, IP20 rating
- Dimensions: 94 x 130 x 150 mm
- Weight: 1,612 g
- DIN-rail mounting
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: UL 62368-1, EN 62368-1, DNV-CG-0339, IEC 60945, ATEX, IECEx, Class I Division 2, RoHS, WEEE

FAQs

Q: What operating systems does the DRP-A100-E4-6C-T support?
A: It supports Windows 11 Professional 64-bit, Windows 11 IoT Enterprise LTSC 2024 64-bit and Windows 10 IoT Enterprise LTSC 2021 64-bit. Linux drivers are available for Debian 12, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: How many serial ports does this model provide and what modes do they support?
A: It provides 8 DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485, with baudrates from 50 bps to 115.2 kbps.

Q: What storage options are available?
A: The unit has one CFast slot with a SATA III interface and one SD 3.0 slot supporting SDHC and SDXC cards, allowing a dual-storage configuration.

Q: Can the memory be upgraded?
A: Yes. It ships with 8 GB DDR4 and has a single SODIMM slot supporting up to 32 GB maximum.

Q: What power supply does it require?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Q: Is it suitable for harsh or hazardous environments?
A: It operates from -30 to 60°C in a metal IP20 housing and carries DNV, ATEX, IECEx and Class I Division 2 certifications, so it is intended for demanding industrial and maritime installations when mounted in a suitable enclosure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
