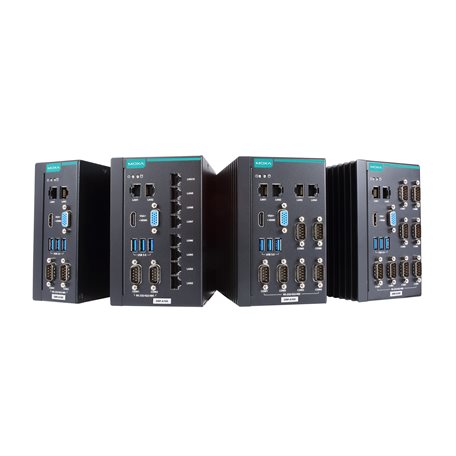

Moxa DRP-A100-E4-2L4C-T | DRP-A100 DIN-Rail Computer, Atom x6425E, 8GB, 4 LAN, 6 Serial

Authorised Moxa Partner

SKU:DRP-A100-E4-2L4C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DRP-A100 DIN-rail industrial computer is built around a quad-core Intel Atom x6425E processor running at 2 GHz, with 8 GB of DDR4 memory pre-installed. This fanless model supplies four Gigabit LAN ports and six software-selectable RS-232/422/485 serial ports, and is supplied without an operating system. It runs from a 12/24 VDC input and is rated for -30 to 60°C operation, making it well suited to field deployments, industrial automation and data acquisition in cabinets and control panels.

Storage is handled by a CFast slot and an SD slot, with a free SODIMM slot supporting memory expansion up to 32 GB. Video is available through HDMI 2.0b and VGA outputs, with three USB 3.0 ports for peripherals and a TPM v2.0 module for platform security. Driver support covers Windows 11, Windows 10 IoT Enterprise and several Linux distributions, and the compact metal housing mounts directly to a DIN rail.

Features

- Fanless DIN-rail mountable design for cabinet and field installation
- Quad-core Intel Atom x6425E processor at 2.0 GHz
- 4 Gigabit LAN ports and 6 software-selectable serial ports on one compact unit
- Wide -30 to 60°C operating temperature range
- Dual storage design with CFast and SD slots
- DNV, CID2, ATEX and IECEx certified
- TPM v2.0 for hardware-based platform security
- Built-in watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E quad-core, 2 GHz, 1.5M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 1 x CFast slot (SATA III), 1 x SD slot (SD 3.0, SDHC/SDXC)
- Ethernet: 4 x 10/100/1000 Mbps RJ45, 1.5 kV built-in magnetic isolation
- Serial: 6 x RS-232/422/485 software-selectable, DB9 male, 50 bps to 115.2 kbps
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b, 1 x VGA, Intel UHD Graphics
- Security: TPM v2.0
- Power input: 12/24 VDC, Euroblock terminal, 50 W consumption
- Operating system: none pre-installed
- Dimensions: 94 x 130 x 150 mm, weight 1,612 g
- Housing: metal, IP20, DIN-rail mounting
- Operating temperature: -30 to 60°C, storage -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Built-in RTC with lithium battery backup and watchdog timer

FAQs

Q: Does the DRP-A100-E4-2L4C-T come with an operating system?
A: No. This SKU is supplied without an operating system. Moxa provides driver support for Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12 and 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What power supply does it need?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal, with power consumption of up to 50 W. A suitable DC power supply is required.

Q: Can the serial ports be configured for RS-232, RS-422 and RS-485?
A: Yes. All six DB9 male serial ports are software-selectable between RS-232, RS-422 and RS-485, with baud rates from 50 bps to 115.2 kbps.

Q: Can the memory be upgraded?
A: Yes. The unit ships with 8 GB of DDR4 and has one SODIMM DDR4 slot, supporting up to 32 GB.

Q: What storage options are available?
A: The unit has one CFast slot with a SATA III interface and one SD 3.0 slot supporting SDHC and SDXC cards. Storage media is not included.

Q: What operating temperature range does it support?
A: It is rated for -30 to 60°C operation, with a storage temperature range of -40 to 75°C, in a fanless design.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
