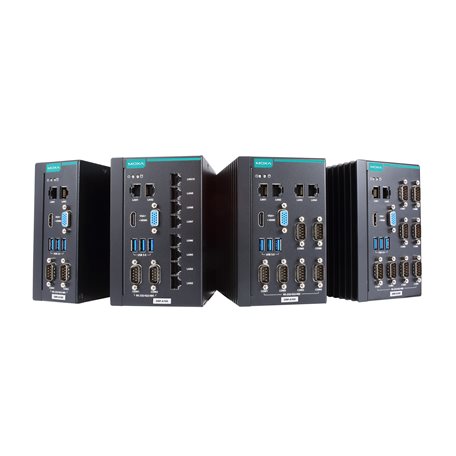

Moxa DRP-A100-E2-T-Win10 | DRP-A100 DIN-Rail Industrial Computer, Atom x6211E, 8GB, Win10

Authorised Moxa Partner

SKU:DRP-A100-E2-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-A100-E2-T-Win10 is a fanless DIN-rail industrial computer built on a dual-core Intel Atom x6211E processor with 8 GB DDR4 memory. It comes with Windows 10 LTSC 2021 preinstalled on a 64 GB CFast card and offers 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports and 3 USB 3.0 ports. It suits field automation, data acquisition and edge computing deployments where a compact, wide-temperature controller is needed.

Video output is provided through VGA and HDMI, with a CFast slot and an SD slot for storage expansion. The metal housing runs from a 12/24 VDC supply via a screw-fastened Euroblock terminal and operates across a -30 to 60°C temperature range, making it well suited to harsh industrial environments. A built-in TPM 2.0 module, real-time clock and watchdog timer support secure and reliable unattended operation.

Features

- Fanless design with DIN-rail mounting
- Compact size to fit most field applications
- Wide operating temperature range of -30 to 60°C for harsh environments
- Built-in TPM 2.0 module secures the platform from unauthorised access
- Built-in RTC with lithium battery backup and built-in watchdog timer (WDT)
- Windows 10 LTSC 2021 preinstalled for ready-to-deploy operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6211E processor (dual core, 1.5M cache, 1.30 GHz)
- 8 GB DDR4 pre-installed; 1 x SODIMM DDR4 slot, up to 32 GB maximum
- 2 x LAN ports (10/100/1000 Mbps)
- 2 x software-selectable RS-232/422/485 serial ports
- 3 x USB 3.0 ports
- 1 x VGA and 1 x HDMI video output
- 1 x CFast slot (SATA III) with 64 GB CFast card pre-installed
- 1 x SD slot (SD 3.0, SDHC/SDXC)
- Windows 10 LTSC 2021 preinstalled
- 12/24 VDC input via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Metal housing, IP20
- Dimensions: 60 x 130 x 150 mm
- Weight: 1,213 g
- Operating temperature: -30 to 60°C
- DIN-rail mounting

FAQs

Q: What operating system is preinstalled on the DRP-A100-E2-T-Win10?
A: It ships with Windows 10 LTSC 2021 preinstalled on the 64 GB CFast card.

Q: What temperature range does this computer support?
A: It is rated for operation from -30 to 60°C, suitable for harsh industrial environments.

Q: Can the memory be upgraded?
A: Yes. It includes 8 GB DDR4 pre-installed and has one SODIMM DDR4 slot supporting up to 32 GB maximum.

Q: What serial and network interfaces are included?
A: It provides 2 x 10/100/1000 Mbps LAN ports and 2 x software-selectable RS-232/422/485 serial ports, plus 3 x USB 3.0 ports.

Q: What power input does it use?
A: It runs from a 12/24 VDC supply via a screw-fastened Euroblock terminal, with power consumption of 50 W.

Q: What video outputs and storage options are available?
A: It has VGA and HDMI video outputs, a CFast slot (SATA III) with a 64 GB card installed, and an SD 3.0 slot supporting SDHC/SDXC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
