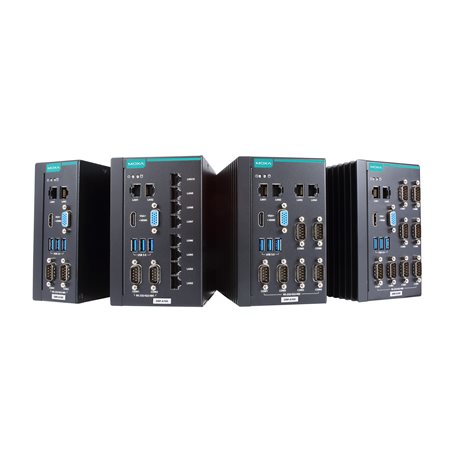

Moxa DRP-A100-E2-T | DRP-A100 DIN-Rail Computer, Atom x6211E, 8GB, 2 LAN

Authorised Moxa Partner

SKU:DRP-A100-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-A100-E2-T is a fanless DIN-rail industrial computer built around a dual-core Intel Atom x6211E processor (Elkhart Lake) with 8 GB DDR4 pre-installed, 2 Gigabit LAN ports and 2 software-selectable RS-232/422/485 serial ports. This model ships with no operating system, making it suited to custom Linux or Windows deployments in factory automation, field control cabinets and remote monitoring sites.

The compact metal housing is rated IP20 and operates from -30 to 60°C on a 12/24 VDC input. Dual storage options (CFast and SD), a SODIMM slot expandable to 32 GB, three USB 3.0 ports and VGA and HDMI video outputs give integrators flexibility, while a built-in TPM 2.0 module supports secure deployments.

Features

- Fanless DIN-rail mountable design
- Intel Atom x6211E dual-core 1.30 GHz (Elkhart Lake)
- Compact size to fit most field applications
- 30 to 60°C operating temperature range
- Dual-storage design with CFast and SD slots
- Battery-fastener cover with trap-door battery slot for easy swapping
- Built-in TPM 2.0 module

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E dual-core, 1.30 GHz, 1.5M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Ethernet: 2 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- USB: 3 x USB 3.0
- Video: 1 x VGA, 1 x HDMI
- Storage: 1 x CFast slot (SATA III), 1 x SD slot (SD 3.0)
- Power input: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Operating temperature: -30 to 60°C
- Housing: metal, IP20, DIN-rail mounting
- Dimensions: 60 x 130 x 150 mm
- Weight: 1,213 g
- Operating system: none preinstalled

FAQs

Q: Does the DRP-A100-E2-T come with an operating system?
A: No. This model ships without an operating system. The Windows 10 variant of the DRP-A100 family is a separate model.

Q: Which operating systems does the DRP-A100 support?
A: Supported systems include Windows 11 Professional 64-bit, Windows 11 IoT Enterprise LTSC 2024 64-bit and Windows 10 IoT Enterprise LTSC 2021 64-bit. Linux drivers are available for Debian 12, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the memory be upgraded?
A: Yes. It has 8 GB DDR4 pre-installed and one SODIMM slot, supporting up to 32 GB maximum.

Q: What storage options does it offer?
A: It has one CFast slot (SATA III interface) and one SD 3.0 slot (SDHC/SDXC), allowing a dual-storage setup.

Q: What are the serial port options?
A: There are two DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: What power supply does it require?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
