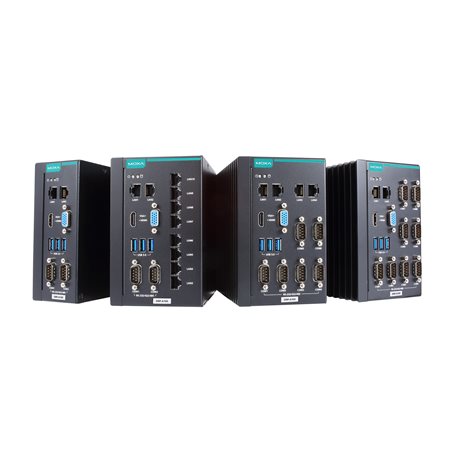

• Moxa DRP-A100-E2-8L-T black modules with teal branding, USB-C, Ethernet ports
1 1

Moxa

Moxa DRP-A100-E2-8L-T | DRP-A100 DIN-Rail Computer, Atom x6211E, 8GB, 10 LAN

Moxa DRP-A100-E2-8L-T | DRP-A100 DIN-Rail Computer, Atom x6211E, 8GB, 10 LAN

Authorised Moxa Partner

DRP-A100-E2-8L-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The DRP-A100-E2-8L-T is a fanless DIN-rail industrial computer built on an Intel Atom x6211E processor with 8GB DDR4 pre-installed. It provides 10 Gigabit Ethernet ports and 2 software-selectable RS-232/422/485 serial ports in a compact metal housing, and is rated for -30 to 60°C wide temperature operation, making it well suited to multi-network edge, automation and data collection deployments.

Storage is handled through a CFast (SATAIII) slot and an SD 3.0 slot, with 3 USB 3.0 ports plus HDMI 2.0b and VGA outputs for local connectivity. It runs Windows 10 and 11 IoT Enterprise or Linux distributions including Debian, Ubuntu and RHEL, and carries TPM v2.0, maritime and hazardous location approvals for demanding environments.

Features

- Fanless, compact DIN-rail design with metal housing
- 10 x Gigabit Ethernet ports with 1.5 kV built-in magnetic isolation
- 2 x software-selectable RS-232/422/485 serial ports
- Wide -30 to 60°C operating temperature range
- TPM v2.0 on board for hardware-based security
- Supports Windows 10/11 IoT Enterprise and Linux (Debian, Ubuntu, RHEL)
- Maritime and hazardous location approvals
- Built-in watchdog timer and real-time clock
- Expandable memory up to 32GB via SODIMM slot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6211E processor, dual core, 1.5M cache, 1.30 GHz
- Intel UHD Graphics
- 8GB DDR4 pre-installed, 1 x SODIMM slot, up to 32GB
- 10 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male), software-selectable
- 3 x USB 3.0 Type-A
- HDMI 2.0b x 1 and VGA x 1 (15-pin D-sub)
- 1 x CFast slot (SATAIII) and 1 x SD 3.0 slot (SDHC/SDXC)
- TPM v2.0
- Input voltage 12/24 VDC, power consumption 50 W
- Screw-fastened Euroblock power connector
- Metal housing, IP20, DIN-rail mounting
- Dimensions 94 x 130 x 150 mm, weight 1,612 g
- Operating temperature -30 to 60°C
- Storage temperature -40 to 75°C
- Humidity 5 to 95% non-condensing
- Built-in RTC with lithium battery backup and watchdog timer
- Safety: UL 62368-1, EN 62368-1, IEC 62368-1, BSMI
- Maritime: DNV-CG-0339, IEC 60945, IACS E10
- Hazardous locations: ATEX, IECEx, Class I Division 2

FAQs

Q: What processor and memory does the DRP-A100-E2-8L-T use?
A: It uses an Intel Atom x6211E dual-core processor running at 1.30 GHz with 8GB DDR4 pre-installed. The single SODIMM slot supports up to 32GB.

Q: How many network and serial ports does it have?
A: It has 10 x 10/100/1000 Mbps RJ45 Ethernet ports and 2 x DB9 male serial ports that are software-selectable between RS-232, RS-422 and RS-485.

Q: Which operating systems are supported?
A: Supported Windows versions are Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021. Linux drivers are available for Debian 12 and 11, Ubuntu 22.04 LTS and RHEL 9.

Q: What storage options are available?
A: It has a CFast slot (SATAIII interface) and an SD 3.0 slot supporting SDHC and SDXC cards.

Q: What power input does it need and what is the operating temperature?
A: It accepts 12/24 VDC through a screw-fastened Euroblock terminal and operates from -30 to 60°C.

Q: How is the unit mounted?
A: It is designed for DIN-rail mounting and has an IP20-rated metal housing with fanless cooling.
