Moxa DRP-A100-E2-6C-T | DRP-A100 DIN-Rail Computer, Atom x6211E, 8GB, 8 COM

Authorised Moxa Partner

SKU:DRP-A100-E2-6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

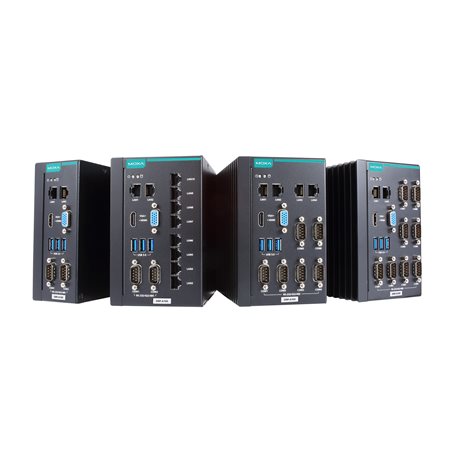

The Moxa DRP-A100-E2-6C-T is a fanless DIN-rail computer built on a dual-core Intel Atom x6211E processor with 8 GB DDR4 pre-installed. It provides 2 Gigabit LAN ports and 8 software-selectable RS-232/422/485 serial ports, making it well suited to serial device connectivity, protocol gateway and edge computing roles in field cabinets and control rooms. This SKU ships without an operating system pre-installed, so it can be deployed with your preferred supported OS image.

Storage and expansion are handled by a CFast slot and an SD slot, with a single SODIMM slot allowing memory to grow up to 32 GB. Video output is available via HDMI 2.0b and VGA, with 3 USB 3.0 host ports for peripherals. A wide -30 to 60°C operating range and DNV, Class I Division 2, ATEX and IECEx approvals support deployment in marine and hazardous location installations.

Features

- Fanless DIN-rail mountable design
- Intel Atom x6211E dual-core 1.30 GHz processor
- 8 software-selectable RS-232/422/485 serial ports on this model
- Compact size to fit most field applications
- 30 to 60°C operating temperature range
- DNV, Class I Division 2, ATEX and IECEx certified
- Dual-storage design with CFast and SD slots for easy storage expansion
- Battery-fastener cover secures the battery, and a trap-door design allows battery swapping without removing the cover
- Communication interfaces on front and rear sides for easy access and expansion
- Built-in RTC with lithium-battery backup and watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6211E, dual core, 1.5M cache, 1.30 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Storage slots: 1 x CFast (SATA III), 1 x SD 3.0 (SDHC/SDXC)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 8 x RS-232/422/485, software-selectable, DB9 male
- Serial baudrate: 50 bps to 115.2 kbps
- USB: 3 x USB 3.0 hosts (type-A)
- Video: 1 x HDMI 2.0b, 1 x VGA (15-pin D-sub)
- Graphics: Intel UHD Graphics
- Security: TPM v2.0
- Magnetic isolation protection: 1.5 kV (built-in)
- Input voltage: 12/24 VDC, screw-fastened Euroblock terminal
- Power consumption: 50 W
- Housing: metal, IP20
- Dimensions (H x W x D): 94 x 130 x 150 mm
- Weight: 1,612 g
- Mounting: DIN-rail
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Certifications: DNV-CG-0339, IEC 60945, IACS E10, ATEX, IECEx, Class I Division 2, UL 62368-1, EN 55032/35
- Supported OS: Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12 and 11, Ubuntu 22.04 LTS, RHEL 9 (OS not pre-installed on this SKU)

FAQs

Q: Does the DRP-A100-E2-6C-T come with an operating system?
A: No. This SKU has no operating system pre-installed. It supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, and Linux drivers for Debian 12 and 11, Ubuntu 22.04 LTS and RHEL 9.

Q: How many serial ports does it have and what standards do they support?
A: It has 8 DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485, with baudrates from 50 bps to 115.2 kbps.

Q: Can I upgrade the memory?
A: Yes. It ships with 8 GB DDR4 pre-installed and has one SODIMM DDR4 slot supporting up to 32 GB maximum.

Q: What storage options are available?
A: The unit provides one CFast slot (SATA III interface) and one SD 3.0 slot (SDHC/SDXC) for storage expansion.

Q: What power input does it require?
A: It runs from a 12/24 VDC input via a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Q: Is it suitable for hazardous or marine environments?
A: It carries ATEX, IECEx and Class I Division 2 hazardous location approvals and maritime certifications including DNV-CG-0339, IEC 60945 and IACS E10, with an operating range of -30 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
