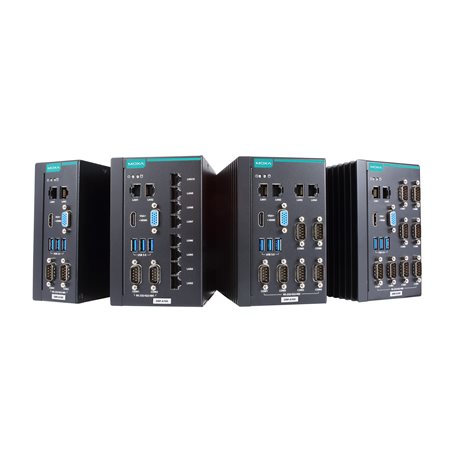

Moxa DRP-A100-E2-2L4C-T | DRP-A100 DIN-Rail Computer, Atom x6211E, 8GB, 4 LAN, 6 Serial

Authorised Moxa Partner

SKU:DRP-A100-E2-2L4C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-A100-E2-2L4C-T is a fanless DIN-rail computer built on a dual-core Intel Atom x6211E processor with 8 GB of pre-installed DDR4 memory. This 2L4C configuration provides 4 Gigabit LAN ports and 6 software-selectable RS-232/422/485 serial ports, making it well suited to industrial gateways, serial device connectivity and edge computing in field cabinets. It is supplied without an operating system preinstalled and runs from a 12/24 VDC input.

The compact metal housing supports DIN-rail mounting and an operating temperature range of -30 to 60°C. Storage expansion is handled by CFast and SD slots, video output is available over HDMI 2.0b and VGA, and a built-in TPM 2.0 module helps protect the platform from unauthorised access. The DRP-A100 family carries DNV, ATEX, IECEx and Class I Division 2 approvals for demanding installations.

Features

- Fanless DIN-rail design for silent, reliable operation
- 4 Gigabit LAN ports with 1.5 kV built-in magnetic isolation
- 6 software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Wide -30 to 60°C operating temperature range
- DNV, ATEX, IECEx and Class I Division 2 certified
- Built-in TPM 2.0 module to protect against unauthorised access
- Dual storage design with CFast and SD slots for easy expansion
- Built-in RTC and watchdog timer for automatic reboot
- Trap-door battery slot for easy battery swapping

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E dual-core, 1.30 GHz, 1.5M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 1 x CFast (SATA III) and 1 x SD 3.0 (SDHC/SDXC) slot
- Ethernet: 4 x 10/100/1000 Mbps RJ45 ports
- Serial: 6 x RS-232/422/485 ports, software-selectable, DB9 male
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b and 1 x VGA (15-pin D-sub)
- Graphics: Intel UHD Graphics
- Security: TPM v2.0
- Input voltage: 12/24 VDC, screw-fastened Euroblock terminal
- Power consumption: 50 W
- Operating temperature: -30 to 60°C
- Housing: metal, IP20, DIN-rail mounting
- Dimensions: 94 x 130 x 150 mm
- Weight: 1,612 g
- Operating system: none preinstalled

FAQs

Q: What does the 2L4C in DRP-A100-E2-2L4C-T mean?
A: This configuration provides 4 Gigabit LAN ports and 6 RS-232/422/485 serial ports, with the Atom x6211E processor and 8 GB of pre-installed DDR4.

Q: Does this model come with an operating system?
A: No. It ships without an operating system preinstalled. The DRP-A100 series supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12 and 11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the memory be upgraded?
A: Yes. It has one SODIMM DDR4 slot and supports up to 32 GB, with 8 GB pre-installed.

Q: How is it powered?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal. A 2-pin DC power terminal block is included in the box.

Q: What storage options are available?
A: It has a CFast slot with a SATA III interface and an SD 3.0 slot supporting SDHC and SDXC cards.

Q: Is it suitable for harsh or hazardous environments?
A: It is fanless with an operating range of -30 to 60°C, and the DRP-A100 series carries DNV, ATEX, IECEx and Class I Division 2 approvals. The housing is rated IP20, so it should be installed inside a suitable enclosure or cabinet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
