Moxa DRP-A100(CTO) | DRP-A100 DIN-Rail Computer, Atom x6000E, CTO

Authorised Moxa Partner

SKU:DRP-A100(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

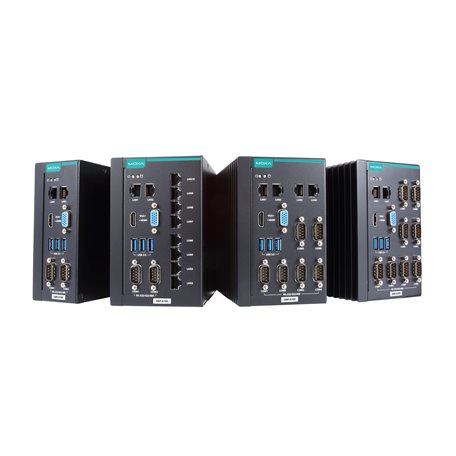

The Moxa DRP-A100(CTO) is a fanless DIN-rail industrial computer built on an Intel Atom x6000E (Elkhart Lake) processor, supplied as a configure-to-order (CTO) SKU within the DRP-A100 family. It is designed for field deployments such as industrial automation, data acquisition and protocol gateway applications, offering up to 8 serial ports and up to 10 gigabit LAN ports depending on the model configuration, and operating across a -30 to 60 C temperature range.

The platform pairs a dual-core Atom x6211E or quad-core Atom x6425E processor with a DDR4 SODIMM slot supporting up to 32 GB, plus dual CFast and SD storage slots. A built-in TPM 2.0 module, 12/24 VDC power input and a compact metal housing suit space-constrained cabinets, while Windows and Linux operating system support gives flexibility for industrial software stacks. Hazardous location and maritime certifications make it suitable for demanding installations.

Features

- Fanless design with -30 to 60 C operating temperature range
- Intel Atom x6211E dual-core or x6425E quad-core Elkhart Lake processor options
- Rich interface options with up to 8 serial and 10 LAN ports
- Dual-storage design with CFast and SD slots
- Battery cover with trap-door design for easy RTC battery swapping
- Built-in TPM 2.0 module protects against unauthorised access
- DNV, CID2, ATEX and IECEx certified
- Compact size fits most field applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: Intel Atom x6211E dual-core 1.30 GHz (E2 models) or x6425E quad-core 2.0 GHz (E4 models)
- Memory: 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 1 x CFast (SATA III) slot and 1 x SD 3.0 slot
- Ethernet: 2, 4 or 10 x 10/100/1000 Mbps RJ45 depending on model
- Serial: 2, 6 or 8 x RS-232/422/485 (software-selectable, DB9 male) depending on model
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b and 1 x VGA
- Graphics: Intel UHD Graphics
- Security: TPM v2.0
- Power input: 12/24 VDC, Euroblock terminal
- Housing: fanless metal, IP20, DIN-rail mounting
- Operating temperature: -30 to 60 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- Certifications: UL 62368-1, EN 62368-1, ATEX, IECEx, Class I Division 2, DNV, IEC 60945
- Built-in RTC with battery backup and watchdog timer

FAQs

Q: What does the CTO suffix mean on the DRP-A100(CTO)?
A: CTO stands for configure-to-order. It is a configurable variant of the DRP-A100 family, so the processor, port layout and options are specified to suit your project.

Q: Which processors are available in the DRP-A100 family?
A: E2 models use the Intel Atom x6211E dual-core 1.30 GHz processor and E4 models use the Intel Atom x6425E quad-core 2.0 GHz processor.

Q: How many serial and LAN ports can the DRP-A100 support?
A: Depending on the model, it supports up to 8 software-selectable RS-232/422/485 serial ports and up to 10 x 10/100/1000 Mbps LAN ports.

Q: What operating systems does the DRP-A100 support?
A: Supported Windows versions include Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021. Linux drivers are available for Debian 11 and 12, Ubuntu 22.04 LTS and RHEL 9.

Q: How is the DRP-A100 powered and mounted?
A: It runs from a 12/24 VDC input via a screw-fastened Euroblock terminal and mounts on a standard DIN rail.

Q: Can the DRP-A100 be used in harsh or hazardous environments?
A: It operates from -30 to 60 C in a fanless metal housing and carries ATEX, IECEx, Class I Division 2 and DNV maritime certifications.
