Moxa DE-LN04-RJ | DA-720 4-Port RJ45 Gigabit LAN Expansion Module

Authorised Moxa Partner

SKU:DE-LN04-RJ

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

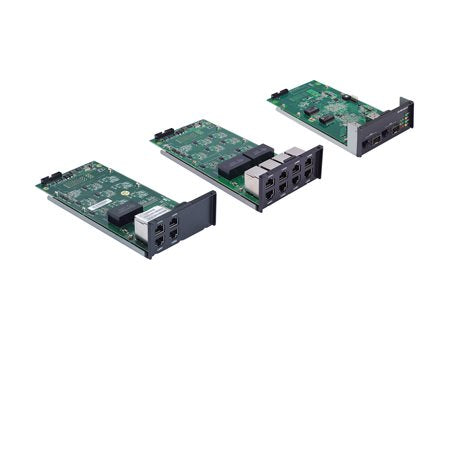

The Moxa DE-LN04-RJ is a 4-port RJ45 Gigabit LAN expansion module designed for Moxa DA-720 series industrial x86 computers. It adds four 10/100/1000BaseT(X) Ethernet ports, making it a practical way to extend network connectivity for industrial communication applications with Ethernet-based devices.

Built for industrial environments, the module offers 1.5 kV built-in magnetic isolation protection and a wide operating temperature range of -25 to 55°C. It belongs to the DA-720 Ethernet expansion module family, and drivers are available for Windows 10 Enterprise LTSB and Debian 8.x.

Features

- 4-port Gigabit LAN module for DA-720 series industrial computers
- Adds flexible Ethernet connectivity for industrial communication applications
- 1.5 kV built-in magnetic isolation protection
- Wide operating temperature range of -25 to 55°C
- Drivers available for Windows 10 Enterprise LTSB and Debian 8.x

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100/1000BaseT(X) RJ45 ports
- No SFP slots on this module
- Magnetic isolation protection: 1.5 kV (built-in)
- Dimensions: 213.31 x 95 mm (8.398 x 3.74 in)
- Weight: 335 g (0.74 lb)
- Operating temperature: -25 to 55°C (-13 to 131°F)
- Storage temperature (package included): -40 to 85°C (-40 to 185°F)
- MTBF: 2,126,091 hrs (Telcordia (Bellcore), GB)
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: Which computers is the DE-LN04-RJ compatible with?
A: It is an expansion module for Moxa DA-720 series industrial x86 computers.

Q: How many Ethernet ports does it add?
A: It provides four 10/100/1000BaseT(X) RJ45 ports.

Q: Does this module include SFP slots?
A: No. The DE-LN04-RJ has RJ45 ports only. SFP slots are available on a different module in the same expansion family.

Q: Which operating systems have drivers available?
A: Drivers are available for Windows 10 Enterprise LTSB and Debian 8.x.

Q: What operating temperature range does it support?
A: The module operates from -25 to 55°C, suiting industrial deployments.

Q: Does the module provide electrical isolation on its ports?
A: Yes. It includes 1.5 kV built-in magnetic isolation protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
