Moxa DA-IRIG-B-S-02-T | DA-IRIG-B-S IRIG-B Expansion Module, PCI, ST Fibre, -40 to 75C

Authorised Moxa Partner

SKU:DA-IRIG-B-S-02-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

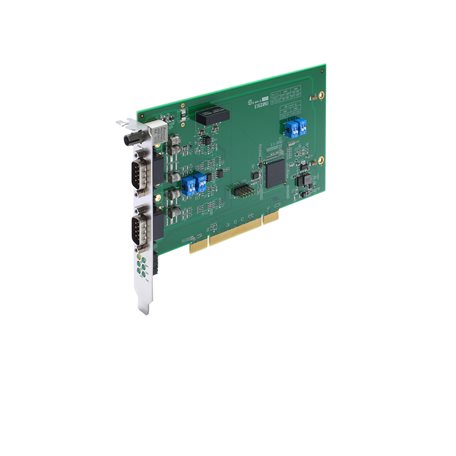

The DA-IRIG-B-S-02-T is a PCI-interface IRIG-B expansion module that adds precision time synchronisation to Moxa embedded computers. This 2-port variant provides one ST fibre IRIG-B input, one DB9 male input/output and one DB9 male output, with a wide -40 to 75°C operating range for harsh industrial and substation environments.

The module accepts single-ended or differential IRIG-B input signals and delivers time synchronisation accuracy of ±1 µs. It occupies a single PCI slot, has 3 digital inputs and 4 digital outputs, and is built to Telcordia (Bellcore) and GB standards for dependable timing in power, rail and automation deployments.

Features

- Provides precision timing information using IRIG-B input signals
- Single-ended or differential IRIG-B input signal support
- ±1 µs time synchronisation accuracy
- ST fibre input for noise-immune timing signal connections
- Wide operating temperature of -40 to 75°C
- Single PCI slot installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PCI interface, 1 x PCI slot
- 1 x ST fibre IRIG-B input
- 1 x DB9 male input/output, 1 x DB9 male output
- Input signal: single-ended or differential
- Time synchronisation accuracy: ±1 µs
- Free running accuracy: ±500 ms at 24 hr
- 3 digital inputs and 4 digital outputs
- Dimensions (without ears): 167.64 x 106.68 mm
- Weight: 120 g
- MTBF: 1,210,356 hrs
- Operating temperature: -40 to 75°C
- Standards: Telcordia (Bellcore), GB

FAQs

Q: What interface does the DA-IRIG-B-S-02-T use?
A: It uses a PCI interface and occupies one PCI slot on the host Moxa embedded computer.

Q: What ports does this module provide?
A: It provides one ST fibre IRIG-B input, one DB9 male input/output port and one DB9 male output port.

Q: How accurate is the time synchronisation?
A: Time synchronisation accuracy is ±1 µs when locked to an IRIG-B source. Free running accuracy is ±500 ms over 24 hours.

Q: Does it support differential IRIG-B signals?
A: Yes. The input accepts either single-ended or differential IRIG-B signals.

Q: What temperature range is supported?
A: This -T model operates from -40 to 75°C, suiting harsh industrial environments.

Q: What is included in the package?
A: The package contains one DA-IRIGB-B-S Series expansion module.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
