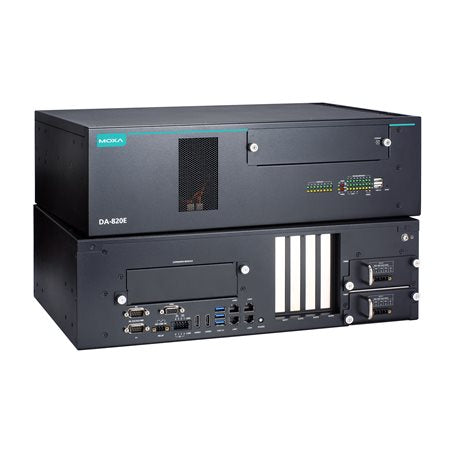

Moxa DA-820E-C7-LL-T | DA-820E 3U Rackmount Computer, Core i7-1370PE, Dual 48V DC PSU

Authorised Moxa Partner

SKU:DA-820E-C7-LL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C7-LL-T is a fanless 3U rackmount industrial computer built on a 13th Gen Intel Core i7-1370PE processor with Intel Iris Xe Graphics. It is designed for power automation and substation deployments, complying with IEC 61850-3, IEEE 1613 and IEC 60255, and operates across a -40 to 70°C temperature range. This model ships with two DA-PWR-120-LV low-voltage 48V DC hot-swappable power supplies for redundant power.

Connectivity includes 4 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs, multiple USB ports and dual HDMI plus VGA display outputs. Four hot-swappable 2.5-inch SATA bays with RAID 0/1 support and an M.2 M-key slot provide flexible storage, while PCIe expansion slots allow additional modules such as an optional PRP/HSR redundancy card. EN 50121-4 compliance also makes it suitable for railway wayside applications.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power automation
- EN 50121-4 compliant for railway wayside applications
- Fanless, rugged design with hot-swappable power modules for electrically harsh environments
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- Security options: TPM 2.0, UEFI Secure Boot and physical security
- Redundant dual low-voltage 48V DC power supplies

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i7-1370PE (28W TDP), Intel Iris Xe Graphics
- Memory: 2 x SO-DIMM DDR4 3200MHz slots, up to 64 GB
- Storage: 4 x 2.5-inch SATA HDD/SSD hot-swappable bays (Intel RST RAID 0/1 on slots 1 and 2), 1 x M.2 M-key 2280 slot
- Network: 4 x 10/100/1000 Mbps RJ45 Gigabit LAN ports
- Serial: 2 x software-selectable RS-232/422/485 ports
- Digital I/O: 6 DI, 2 DO
- USB: 3 x USB 3.0, 2 x USB 2.0
- Display: 2 x HDMI, 1 x VGA
- Expansion: 1 PCIe x8 (4-lane) and 3 PCIe x1 for expansion modules
- Power: 2 x DA-PWR-120-LV low-voltage (48V DC) hot-swappable power modules
- Operating temperature: -40 to 70°C
- Dimensions: 465.6 x 301 x 132.6 mm; weight 11,860 g
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS, Debian 12
- Certifications: CE, RoHS, IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, IEC 62368-1, UL 62368-1

FAQs

Q: What power input does the DA-820E-C7-LL-T use?
A: It includes two DA-PWR-120-LV low-voltage 48V DC hot-swappable power modules, providing redundant power.

Q: Which standards does it comply with for substation use?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, and EN 50121-4 for railway wayside applications.

Q: What operating temperature range does it support?
A: The DA-820E-C7-LL-T operates from -40 to 70°C in a fanless design.

Q: How much memory and storage can it hold?
A: It has two SO-DIMM DDR4 3200MHz slots for up to 64 GB, four hot-swappable 2.5-inch SATA bays with RAID 0/1 on slots 1 and 2, and one M.2 M-key 2280 slot.

Q: Does it support PRP/HSR network redundancy?
A: Yes, PRP/HSR redundancy is available through an optional PRP/HSR expansion module installed in the PCIe expansion slots.

Q: Which operating systems are supported?
A: Supported systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS and Debian 12.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
