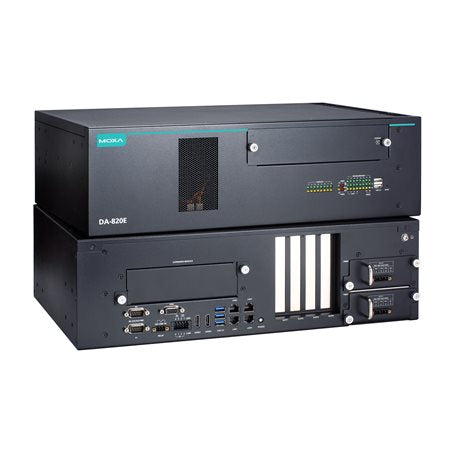

Moxa DA-820E-C7-L-T | DA-820E 3U Rackmount Industrial Computer, Core i7-1370PE, 48 VDC

Authorised Moxa Partner

SKU:DA-820E-C7-L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C7-L-T is a fanless 3U rackmount industrial computer for IEC 61850-3 substation automation and power utility applications. It is built on a 13th Gen Intel Core i7-1370PE processor and includes a single hot-swappable 48 VDC power module (DA-PWR-120-LV), with an operating temperature range of -40 to 70°C. This variant ships without RAM, SSD or operating system, so you can specify the memory, storage and OS to suit your deployment.

Four hot-swappable 2.5" SATA bays support Intel RST RAID 0/1 on slots 1 and 2, and two SO-DIMM DDR4 slots take up to 64 GB of RAM. Four Gigabit Ethernet ports, two RS-232/422/485 serial ports, 6 DI and 2 DO connect field equipment, while an optional PRP/HSR expansion module adds network redundancy. Windows 11/10, Windows Server 2022 and Linux are supported, with TPM 2.0 and UEFI Secure Boot for platform security.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- 13th Gen Intel Core processor for demanding substation workloads
- 4 SSD slots with Intel RST RAID 0/1 support on slots 1 and 2
- Up to 64 GB RAM via two built-in SO-DIMM DDR4 slots
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- Redundant, hot-swappable power module design
- Supports Windows 11/10, Windows Server 2022 and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i7-1370PE
- Memory: 2 x SO-DIMM DDR4 slots, up to 64 GB (RAM not included)
- Ethernet: 4 x 10/100/1000 Mbps RJ45 ports
- Serial: 2 x RS-232/422/485 (DB9)
- I/O: 6 x DI, 2 x DO
- USB: 3 x USB 3.0, 2 x USB 2.0
- Display outputs: 2 x HDMI, 1 x VGA
- Storage: 4 x hot-swappable 2.5" SATA SSD/HDD bays, Intel RST RAID 0/1 on slots 1 and 2
- M.2: 1 x M.2 2280 M-key slot
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1, 1 x proprietary expansion module slot
- Power: 1 x DA-PWR-120-LV hot-swappable 48 VDC power module included, redundant power supported
- Operating temperature: -40 to 70°C (without RAM/SSD/OS)
- Security: TPM 2.0, UEFI Secure Boot
- Form factor: 3U 19" rackmount, fanless, IP30 metal housing
- Certifications: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, IEC 62368-1, UL 62368-1

FAQs

Q: Does the DA-820E-C7-L-T include RAM, storage and an operating system?
A: No. This variant ships without RAM, SSD or OS. It has two SO-DIMM DDR4 slots for up to 64 GB of RAM and four hot-swappable 2.5" SATA bays, so you can fit the memory and storage you need.

Q: What power supply does this model use?
A: It includes one DA-PWR-120-LV hot-swappable 48 VDC power module. The chassis supports redundant power, with 100-240 VAC/VDC and 48 VDC modules available.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0 and 1 are supported on SATA slots 1 and 2.

Q: What operating systems are supported?
A: Windows 11/10, Windows Server 2022 and Linux are supported.

Q: Can it be used for IEC 61850-3 substation applications?
A: Yes. It is designed for power automation and complies with IEC 61850-3, IEEE 1613 and IEC 60255, and it is also EN 50121-4 compliant for railway wayside use.

Q: Can I add PRP/HSR network redundancy?
A: Yes. An optional PRP/HSR expansion module can be fitted to the proprietary expansion module slot for PRP/HSR redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
