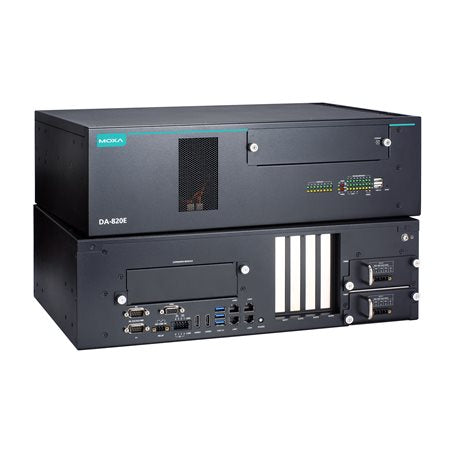

Moxa DA-820E-C7-HH-T | DA-820E Series 3U Rackmount Computer, Core i7-1370PE, Dual PSU

Authorised Moxa Partner

SKU:DA-820E-C7-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C7-HH-T is a fanless 3U IEC 61850-3 rackmount industrial computer built on a 13th Gen Intel Core i7-1370PE processor. It ships with two hot-swappable DA-PWR-150-HV power modules (100-240 VAC/VDC) for redundant power and is rated for -40 to 70°C operation, making it suited to power-substation automation and railway wayside applications.

The platform provides 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, plus 3 USB 3.0, 2 USB 2.0, 2 HDMI and 1 VGA. Storage includes four hot-swappable 2.5-inch drive slots with RAID 0/1 support and an M.2 M-key slot, with PCIe expansion for additional interface cards and an optional PRP/HSR module for network redundancy.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power-substation automation
- EN 50121-4 compliant for railway wayside applications
- Redundant, hot-swappable power supply modules
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- Security options: TPM 2.0, UEFI Secure Boot, physical security
- Fanless, IP30 metal housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i7-1370PE (Raptor Lake-P)
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB (3200 MHz, 32 GB max per module)
- Graphics: Intel Iris Xe
- Storage: 4 x 2.5-inch hot-swappable HDD/SSD slots (Intel RST RAID 0/1 on slots 1 and 2), 1 x M.2 M-key 2280 slot
- LAN: 4 x 10/100/1000 Mbps Ethernet ports
- Serial: 2 x RS-232/422/485 (DB9 male)
- Digital I/O: 6 DI, 2 DO
- USB: 3 x USB 3.0, 2 x USB 2.0
- Display: 2 x HDMI, 1 x VGA
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1
- Power: 2 x DA-PWR-150-HV hot-swappable power modules (100-240 VAC/VDC)
- Operating temperature: -40 to 70°C
- Dimensions: 440 x 301 x 132.55 mm (3U rackmount)
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS, Debian 12

FAQs

Q: What power supplies are included with the DA-820E-C7-HH-T?
A: This model includes two DA-PWR-150-HV hot-swappable power modules accepting 100-240 VAC/VDC, providing redundant power.

Q: What temperature range does this computer support?
A: It is rated for operation from -40 to 70°C, suited to harsh substation and railway wayside environments.

Q: Which industry standards does it comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power-substation automation, and EN 50121-4 for railway wayside applications.

Q: How much memory and storage can it hold?
A: It has two DDR4 SODIMM slots supporting up to 64 GB, four hot-swappable 2.5-inch drive bays with RAID 0/1 on slots 1 and 2, and one M.2 M-key 2280 slot.

Q: Does it support network redundancy protocols such as PRP/HSR?
A: Yes, PRP/HSR redundancy is available through an optional PRP/HSR expansion module.

Q: Which operating systems are supported?
A: Supported systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS and Debian 12.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
