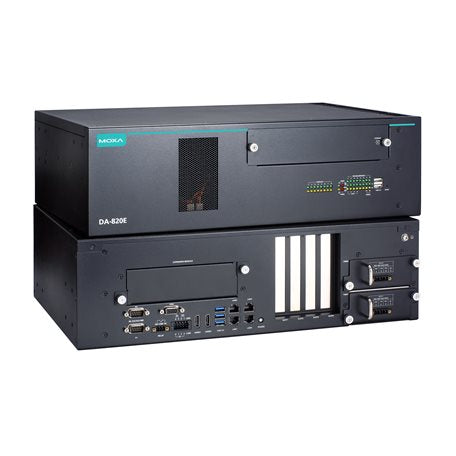

Moxa DA-820E-C7-H-T | DA-820E 3U Rackmount Computer, Core i7-1370PE, 4 GbE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820E-C7-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C7-H-T is a fanless 3U rackmount industrial computer built for IEC 61850-3 substation automation and other electrically harsh environments. It is powered by a 13th Gen Intel Core i7-1370PE processor and ships with a single hot-swappable DA-PWR-150-HV power module, with an operating range of -40 to 70°C.

Four 10/100/1000 Mbps RJ45 ports, two software-selectable RS-232/422/485 serial ports, 6 DI and 2 DO channels, dual HDMI plus VGA output and five USB ports cover typical substation and wayside connectivity. Four hot-swappable 2.5 inch SATA bays and an M.2 M-key slot provide flexible storage, with Intel RST RAID 0/1 support and up to 64 GB of DDR4 memory.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- 13th Gen Intel Core processor for demanding edge workloads
- 4 SSD slots with Intel RST RAID 0/1 support on slots 1 and 2
- Up to 64 GB RAM from two built-in SO-DIMM DDR4 slots
- PRP/HSR technology support
- Fanless, rugged design for electrically harsh environments
- Hot-swappable power module

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i7-1370PE (28W TDP)
- Memory: 2 x DDR4 3200MHz SO-DIMM slots, up to 64 GB
- Storage: 4 x 2.5 inch SATA III hot-swappable SSD/HDD bays, plus 1 x M.2 2280 M-key slot
- RAID: Intel RST RAID 0/1 on SSD slots 1 and 2
- LAN: 4 x 10/100/1000 Mbps RJ45
- Serial: 2 x software-selectable RS-232/422/485
- Digital I/O: 6 DI, 2 DO
- USB: 3 x USB 3.0, 2 x USB 2.0
- Display: 2 x HDMI, 1 x VGA
- Power: 1 x DA-PWR-150-HV hot-swappable power module (100 to 240V AC or DC)
- Operating temperature: -40 to 70°C
- Dimensions: 465.6 x 301 x 132.6 mm (3U)
- OS support: Windows 11/10, Windows Server 2022, Linux

FAQs

Q: What standards does the DA-820E-C7-H-T comply with?
A: It is an IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer, and it also meets EN 50121-4 for railway wayside applications.

Q: What operating temperature range does it support?
A: The DA-820E-C7-H-T operates from -40 to 70°C, which suits unconditioned substation and outdoor cabinet installations.

Q: How much memory and storage can be installed?
A: It has two DDR4 3200MHz SO-DIMM slots supporting up to 64 GB. Storage options are four hot-swappable 2.5 inch SATA III bays and one M.2 2280 M-key slot.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0 and 1 are supported on SSD slots 1 and 2.

Q: What power supply does this model include?
A: It uses a single hot-swappable DA-PWR-150-HV power module that accepts 100 to 240V AC or DC input.

Q: Which operating systems are supported?
A: Windows 11, Windows 10, Windows Server 2022 and Linux are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
