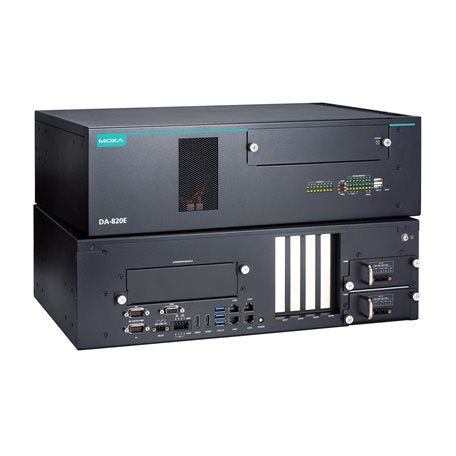

Moxa DA-820E-C5-T | 820E 3U Substation Computer, IEC 61850‑3, i5‑1350PE, 4 x GbE, DA

Moxa DA-820E-C5-T | 820E 3U Substation Computer, IEC 61850‑3, i5‑1350PE, 4 x GbE, DA

DA-820E-C5-T

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Engineered for substation and heavy industrial deployments, the DA-820E pairs a 13th Gen Intel Core i5-1350PE with IEC 61850-3 compliance in a rugged 3U rackmount form factor.. Rich I/O includes 4 GbE ports, 2 RS-232/422/485, 6 digital inputs, 2 digital outputs, multiple USB, and triple-display via 2 HDMI plus VGA. With wide -40 to 70°C operation and flexible storage via 1 x M.2 M-key and 4 x SATA slots, this platform delivers reliable performance at the edge.. Backed by the manufacturer’s warranty for peace of mind.. Available now at iptrading.com.au — competitive prices and local support.

Features

- Substation-grade reliability with IEC 61850-3 compliance
- Modern performance from 13th Gen Intel Core i5-1350PE
- Wide -40 to 70°C operation for harsh industrial sites
- Extensive I/O: 4 x GbE, dual RS-232/422/485, DI/DO, USB
- Flexible storage: 1 x M.2 M-key plus 4 x SATA slots
- Triple-display capability via 2 x HDMI and 1 x VGA
- Rugged 3U rackmount platform for easy integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 3U rackmount industrial computer
- 13th Gen Intel Core i5-1350PE processor
- IEC 61850-3 substation-grade compliance
- Operating temperature: -40 to 70°C
- 4 x 10/100/1000Base-T Ethernet ports
- 2 x RS-232/422/485 serial ports
- 6 x digital inputs (DI), 2 x digital outputs (DO)
- 3 x USB 3.0 Type-A ports
- 2 x USB 2.0 Type-A ports
- 2 x HDMI and 1 x VGA display outputs
- 1 x M.2 M-key slot for storage expansion
- 4 x SATA drive slots

FAQs

Q: Is the DA-820E suitable for substation environments?
A: Yes. It is IEC 61850-3 compliant and designed for the electrical substation environment, with a rugged 3U chassis and wide -40 to 70°C operating range.

Q: How many displays can it drive?
A: It supports up to three displays via 2 x HDMI and 1 x VGA outputs, depending on the OS and graphics settings.

Q: What networking and serial connectivity are available?
A: It provides 4 x Gigabit Ethernet ports for LAN/SCADA networks and 2 x RS-232/422/485 multi-protocol serial ports for legacy and industrial devices.

Q: What storage options does it support?
A: The system offers 1 x M.2 M-key slot and 4 x SATA slots for SSD/HDD installation, allowing flexible capacity and performance configurations.

Q: Can I use digital I/O for alarms or controls?
A: Yes. It has 6 digital inputs and 2 digital outputs that can be leveraged for status monitoring, alarms, and simple control signals.

Q: How do I buy this in Australia from IP Trading?
A: Order directly at iptrading.com.au or contact IP Trading for a quote. We provide local support, invoicing in AUD, and fast shipping Australia-wide.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
