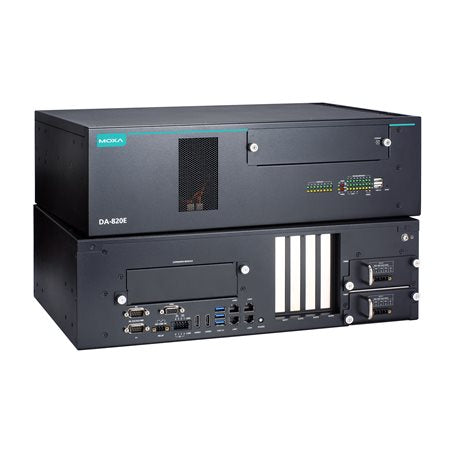

Moxa DA-820E-C5-L-T | DA-820E Series 3U Rackmount Computer, Core i5-1340PE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820E-C5-L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C5-L-T is a fanless IEC 61850-3 3U rackmount industrial computer for substation automation and other power-automation deployments. Built on a 13th Gen Intel Core i5-1340PE processor, it ships with one hot-swappable DA-PWR-120-LV power module and operates across a wide -40 to 70°C temperature range.

With 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, it connects to field equipment and control networks. Four hot-swappable 2.5-inch SATA bays with Intel RST RAID 0/1, an M.2 M-key slot and PCIe expansion provide room for storage and I/O growth, while PRP/HSR redundancy is available with an optional expansion module.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- Fanless design with extended -40 to 70°C operation
- Four hot-swappable SATA bays with Intel RST RAID 0/1 on slots 1 and 2
- PRP/HSR network redundancy with a PRP/HSR expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- Redundant power supply support (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i5-1340PE
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB (3200 MHz, 32 GB per module)
- LAN: 4 x 10/100/1000 Mbps Gigabit Ethernet ports
- Serial: 2 x RS-232/422/485 (DB9 male, 2 kV isolation, 300 bps to 115.2 kbps)
- Digital I/O: 6 DI, 2 DO
- USB: 3 x USB 3.0, 2 x USB 2.0
- Display outputs: 2 x HDMI, 1 x VGA
- Storage: 4 x 2.5-inch hot-swappable SATA HDD/SSD slots, 1 x M.2 M-key 2280 slot
- RAID: Intel RST RAID 0/1 on SATA slots 1 and 2
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1
- Power: 1 x DA-PWR-120-LV hot-swappable power module (100 to 240 VAC/VDC)
- Operating temperature: -40 to 70°C
- Form factor: 3U, 19-inch rack mount
- Weight: 11,860 g

FAQs

Q: Which standards does the Moxa DA-820E-C5-L-T comply with?
A: It is an IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer, and it also meets EN 50121-4 for railway wayside applications.

Q: What processor does this model use?
A: It uses a 13th Gen Intel Core i5-1340PE processor with up to 64 GB of DDR4 memory across two SODIMM slots.

Q: Does it support RAID?
A: Yes. It has four 2.5-inch hot-swappable SATA slots, and Intel RST RAID 0/1 is supported on slots 1 and 2.

Q: Can it be used with PRP/HSR networks?
A: Yes, PRP/HSR network redundancy is supported when a PRP/HSR expansion module is fitted.

Q: What power module is included?
A: This SKU ships with one hot-swappable DA-PWR-120-LV power module (100 to 240 VAC/VDC). Redundant power supply configurations are also supported.

Q: What is the operating temperature range?
A: This model operates from -40 to 70°C, making it suited to harsh substation and industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
