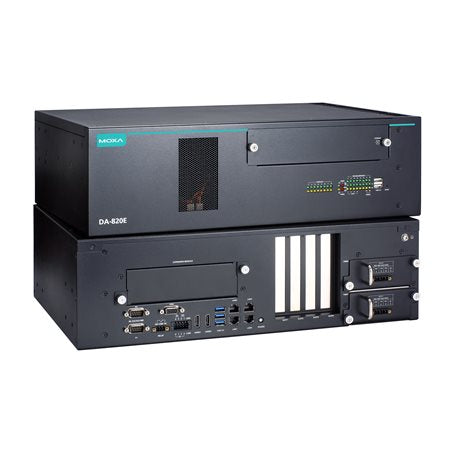

Moxa DA-820E-C5-H-T | DA-820E 3U Rackmount Industrial Computer, Core i5-1340PE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820E-C5-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C5-H-T is a fanless 3U rackmount industrial computer built around a 13th Gen Intel Core i5-1340PE, designed for substation automation and railway wayside deployments. It is IEC 61850-3, IEEE 1613 and IEC 60255 compliant, operates from -40 to 70°C, and includes a single hot-swappable DA-PWR-150-HV power module (100-240 VAC/VDC). It is supplied without RAM, SSD or operating system, so it can be configured to suit each project.

With 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, it connects directly to field devices and control networks. Four hot-swappable 2.5-inch SATA bays with RAID 0/1 support on slots 1 and 2, an M.2 M-key slot and PCIe expansion slots provide flexible storage and I/O growth. It supports Windows 11/10, Windows Server 2022 and Linux.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power automation
- EN 50121-4 compliant for railway wayside applications
- Four SSD slots with Intel RST RAID 0/1 on slots 1 and 2
- PRP/HSR network redundancy with a PRP/HSR expansion module
- Security options including TPM 2.0, UEFI Secure Boot and physical security
- Redundant power supply options (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design
- Supports Windows 11/10, Windows Server 2022 and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 13th Gen Intel Core i5-1340PE processor with Intel Iris Xe Graphics
- 2 x SO-DIMM DDR4 slots, up to 64 GB RAM (RAM not included)
- 4 x Gigabit Ethernet LAN ports
- 2 x RS-232/422/485 serial ports, DB9 male, 2 kV isolation
- 6 x digital inputs, 2 x digital outputs
- 3 x USB 3.0, 2 x USB 2.0
- 2 x HDMI and 1 x VGA display outputs
- 4 x hot-swappable 2.5-inch SATA HDD/SSD slots, Intel RST RAID 0/1 on slots 1 and 2
- 1 x M.2 M-key 2280 slot
- 1 x PCIe x8 (4-lane) and 3 x PCIe x1 expansion slots, plus 1 proprietary expansion slot
- 1 x DA-PWR-150-HV hot-swappable power module, 100 to 240 VAC/VDC
- Operating temperature -40 to 70°C
- 3U rackmount form factor, fanless
- Certifications: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, IEC 62368-1, UL 62368-1

FAQs

Q: Does the DA-820E-C5-H-T include RAM, storage or an operating system?
A: No. It is supplied without RAM, SSD or operating system. It has 2 SO-DIMM DDR4 slots supporting up to 64 GB, 4 hot-swappable 2.5-inch SATA bays and an M.2 M-key slot for storage.

Q: What operating temperature range does it support?
A: It operates from -40 to 70°C and is fanless, suiting unattended substation and railway wayside installations.

Q: Which standards does this computer comply with?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, EN 50121-4 for railway wayside use, and IEC 62368-1 / UL 62368-1 for safety.

Q: Can I add a second power supply for redundancy?
A: This model ships with a single DA-PWR-150-HV hot-swappable power module (100 to 240 VAC/VDC). The DA-820E platform supports redundant power options in 100 to 240 VAC/VDC and 48 VDC.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0/1 is supported on SSD slots 1 and 2 of the four hot-swappable SATA slots.

Q: Can it be used in PRP/HSR networks?
A: Yes, PRP/HSR network redundancy is available by adding a PRP/HSR expansion module.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
