Moxa DA-820E-C3-LL-T | DA-820E 3U Rackmount Computer, Core i3-1320PE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820E-C3-LL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

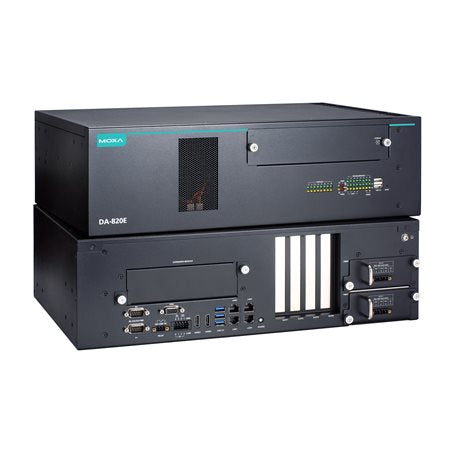

The Moxa DA-820E-C3-LL-T is an IEC 61850-3 compliant 3U rackmount industrial computer built on a 13th Gen Intel Core i3-1320PE processor. Designed for power substation automation and other harsh environments, it supports operation from -40 to 70°C and ships with two DA-PWR-120-LV redundant, hot-swappable power modules.

Connectivity includes 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs, USB 3.0 and USB 2.0 ports, plus dual HDMI and VGA video outputs. Four hot-swappable 2.5-inch SATA bays, an M.2 M-key slot and PCIe expansion slots allow storage and I/O to be tailored to the deployment, while TPM 2.0 and UEFI Secure Boot support secure operation.

Features

- IEC 61850-3 compliant for power substation automation
- PRP/HSR network redundancy (with a PRP/HSR expansion module)
- Security options including TPM 2.0, UEFI Secure Boot and physical security
- Redundant, hot-swappable power supplies (100 to 240 VAC/VDC and 48 VDC)
- Four hot-swappable 2.5-inch SSD slots
- PCIe expansion slots for modules (1 x PCIe x8 and 3 x PCIe x1)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i3-1320PE with Intel UHD Graphics
- Memory: 2 x SODIMM DDR4 slots, 64 GB maximum (3200 MHz, 32 GB per module)
- Network: 4 x 10/100/1000 Mbps Gigabit Ethernet ports
- Serial: 2 x RS-232/422/485 (DB9 male, 2 kV isolation, 300 bps to 115.2 kbps)
- I/O: 6 x digital inputs (Euroblock terminal, 3 kVDC isolation) and 2 x digital outputs
- USB: 3 x USB 3.0 and 2 x USB 2.0
- Video: 2 x HDMI (up to 3840x2160 @ 60Hz) and 1 x VGA (up to 1920x1200 @ 60Hz)
- Storage: 4 x hot-swappable 2.5-inch SATA HDD/SSD slots and 1 x M.2 M-key 2280 slot
- Expansion: 1 x PCIe x8 (4-lane) and 3 x PCIe x1 slots
- Power: 2 x DA-PWR-120-LV modules, input 100 to 240 VAC/VDC or 48 VDC
- Security: TPM 2.0 and UEFI Secure Boot
- Operating temperature: -40 to 70°C
- Housing: metal, IP30, 19-inch rack mounting
- Dimensions (without ears): 440 x 301 x 132.55 mm
- Weight: 11,860 g

FAQs

Q: Is the DA-820E-C3-LL-T suitable for power substations?
A: Yes. It is IEC 61850-3 compliant and designed for substation automation and other harsh environments.

Q: Are power supplies included?
A: Yes. This model ships with two DA-PWR-120-LV redundant, hot-swappable power modules supporting 100 to 240 VAC/VDC or 48 VDC input.

Q: What operating temperature range does it support?
A: It operates from -40 to 70°C.

Q: Does it support PRP/HSR network redundancy?
A: Yes, PRP/HSR redundancy is available when a PRP/HSR expansion module is installed in the PCIe expansion slots.

Q: What storage options does it offer?
A: Four hot-swappable 2.5-inch SATA HDD/SSD bays and one M.2 M-key 2280 slot.

Q: How much memory can it support?
A: Two SODIMM DDR4 slots support up to 64 GB in total (3200 MHz, 32 GB per module).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
