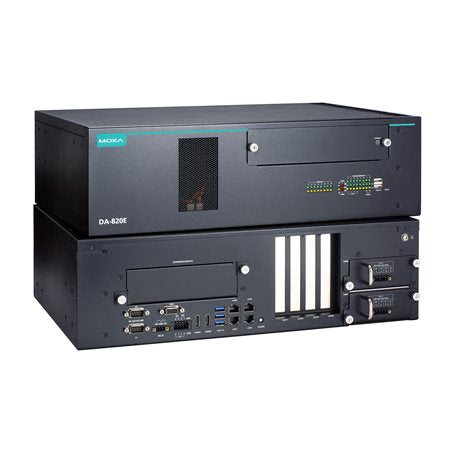

Moxa DA-820E-C3-HH-T | DA-820E IEC 61850-3 3U Rackmount Computer, Core i3-1320PE, Dual PSU, -40 to

Authorised Moxa Partner

SKU:DA-820E-C3-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C3-HH-T is an IEC 61850-3 compliant 3U rackmount industrial computer for substation and power-automation deployments, built around a 13th Gen Intel Core i3-1320PE processor. It ships with dual hot-swappable DA-PWR-150-HV power modules and operates across a wide -40 to 70°C temperature range, suiting unattended utility and wayside installations.

Connectivity includes 4 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, with HDMI and VGA display outputs. Four hot-swappable 2.5-inch SATA SSD slots with RAID 0/1, PCIe expansion and an M.2 M-key slot allow the platform to be tailored to the application, while TPM 2.0 and UEFI Secure Boot support a hardened deployment.

Features

- Compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power-substation automation
- EN 50121-4 compliant for railway wayside applications
- Redundant, hot-swappable power modules
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- 4 hot-swappable SSD slots with RAID 0/1 support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i3-1320PE
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB
- Network: 4 x Gigabit LAN ports
- Serial: 2 x RS-232/422/485 (software selectable, DB9 male)
- Digital I/O: 6 x DI, 2 x DO
- USB: 3 x USB 3.0 and 2 x USB 2.0
- Display: 2 x HDMI and 1 x VGA
- Storage: 4 x hot-swappable 2.5-inch SATA SSD slots, Intel RST RAID 0/1 on slots 1 and 2
- Expansion: 1 x M.2 M-key slot, 1 x PCIe x8 (4-lane), 3 x PCIe x1, 1 proprietary expansion slot
- Power: 2 x DA-PWR-150-HV hot-swappable power modules, 100 to 240 VAC/VDC
- Operating temperature: -40 to 70°C
- Form factor: 3U, 19-inch rackmount

FAQs

Q: Is the DA-820E-C3-HH-T suitable for power substations?
A: Yes. It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255, which are the standards required for substation automation equipment.

Q: Does it include redundant power supplies?
A: Yes. It ships with two hot-swappable DA-PWR-150-HV power modules accepting 100 to 240 VAC/VDC, so one module can be replaced without shutting the system down.

Q: What processor does this model use?
A: It uses a 13th Gen Intel Core i3-1320PE, and it supports up to 64 GB of DDR4 memory across two SODIMM slots.

Q: Can it support network redundancy protocols such as PRP and HSR?
A: Yes. PRP/HSR redundancy is available through an optional PRP/HSR expansion module, which is not included with this model.

Q: What storage options does the DA-820E-C3-HH-T offer?
A: It has four hot-swappable 2.5-inch SATA SSD slots, with Intel RST RAID 0/1 supported on slots 1 and 2, plus an M.2 M-key slot.

Q: What temperature range can it operate in?
A: This -T model operates from -40 to 70°C, making it suitable for harsh and unattended industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
