Moxa DA-820E-C3-H-T | DA-820E 3U Rackmount Computer, Core i3-1320PE, -40 to 70C

Authorised Moxa Partner

SKU:DA-820E-C3-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

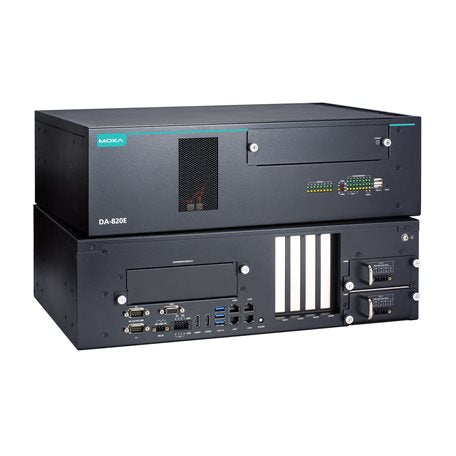

The DA-820E-C3-H-T is a fanless 3U rackmount industrial computer for IEC 61850-3 substation automation, built on a 13th Gen Intel Core i3-1320PE processor. It ships with one hot-swappable DA-PWR-150-HV power module (100-240 VAC/VDC) and operates across a -40 to 70°C temperature range, making it suited to electrically harsh power-automation and railway wayside installations.

The DA-820E-C3-H-T combines 4 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs with 3 USB 3.0 ports and dual HDMI plus VGA display outputs. Four hot-swappable 2.5-inch SATA bays, an M.2 slot and PCIe expansion provide flexibility for storage and add-on modules, with optional PRP/HSR network redundancy through an expansion module.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- Security options: TPM 2.0, UEFI Secure Boot and physical security
- Redundant hot-swappable power supply design (100-240 VAC/VDC and 48 VDC options)
- Fanless, rugged design for electrically harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 13th Gen Intel Core i3-1320PE with Intel UHD Graphics
- Memory: 2 x SO-DIMM DDR4 3200MHz slots, up to 64 GB
- Network: 4 x Gigabit Ethernet (RJ45) ports
- Serial: 2 x RS-232/422/485 software-selectable ports (DB9)
- Digital I/O: 6 x DI, 2 x DO
- USB: 3 x USB 3.0 and 2 x USB 2.0 ports
- Display: 2 x HDMI and 1 x VGA outputs
- Storage: 4 x hot-swappable 2.5-inch SATA SSD/HDD bays plus 1 x M.2 2280 M-key slot
- RAID: Intel RST RAID 0/1 on SSD slots 1 and 2
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1, 1 x proprietary expansion module slot
- Power: 1 x DA-PWR-150-HV hot-swappable power module (100-240 VAC/VDC), redundant PSU supported
- Security: TPM 2.0
- Operating temperature: -40 to 70°C
- Dimensions: approx. 465.6 x 301 x 132.6 mm (3U)
- Supported OS: Windows 11/10, Windows Server 2022, Linux
- Certifications: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, CE, RoHS

FAQs

Q: What standards does the DA-820E-C3-H-T comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, and EN 50121-4 for railway wayside applications.

Q: What power supply is included?
A: It includes one hot-swappable DA-PWR-150-HV power module supporting 100-240 VAC/VDC. Redundant power supply operation is supported.

Q: What operating temperature range does it support?
A: The DA-820E-C3-H-T operates from -40 to 70°C.

Q: Does it support PRP/HSR redundancy?
A: Yes, PRP/HSR network redundancy is available through an optional PRP/HSR expansion module.

Q: What storage options does it offer?
A: It has four hot-swappable 2.5-inch SATA SSD/HDD bays and one M.2 2280 M-key slot, with Intel RST RAID 0/1 on SSD slots 1 and 2.

Q: Which operating systems are supported?
A: It supports Windows 11, Windows 10, Windows Server 2022 and Linux.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
