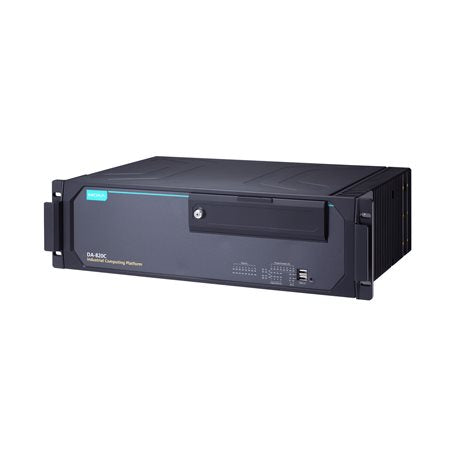

Moxa DA-820C-T-CTO | DA-820C 3U Rackmount Computer, IEC 61850-3, PRP/HSR, CTO

Authorised Moxa Partner

SKU:DA-820C-T-CTO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-T-CTO is a 3U rackmount industrial computer built for power substation automation, powered by a 7th Gen Intel Xeon or Core processor. It complies with IEC 61850-3 and IEEE 1613 and supports PRP/HSR redundancy through an expansion module. As a configure-to-order (CTO) build, the CPU, RAM and storage are selected at order to suit the deployment.

Four hot-swappable 2.5" SATA bays with RAID 0/1/5/10, redundant power, and PCIe and PCI expansion slots give this rackmount computer the flexibility and uptime that utility and rail wayside applications demand. TPM 2.0, UEFI Secure Boot and USB port protection add platform-level security, while PTP and IRIG-B time synchronisation support precise timing.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- Supports PRP/HSR with an expansion module
- PTP (IEEE 1588) and IRIG-B time synchronisation (with IRIG-B expansion module)
- Security: TPM 2.0, UEFI Secure Boot, USB port protection
- Intel vPro, AMT and TPM support
- Hot-swappable SATA bays with RAID 0/1/5/10 for storage resilience

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU options: Intel Xeon E3-1505M v6 / E3-1505L v6, Core i7-7820EQ, Core i5-7442EQ, Core i3-7102E
- 2 x SODIMM DDR4 slots, up to 64 GB (ECC supported only on i3 and Xeon models)
- 4 x hot-swappable 2.5" SATA HDD/SSD bays with Intel RST RAID 0/1/5/10
- 3 display outputs (2 x HDMI, 1 x VGA)
- 4 x 10/100/1000 Mbps RJ45 LAN ports
- 6 USB ports (3 x USB 3.0 Type-A, 2 x USB 2.0 Type-A external)
- 2 x RS-232/422/485 (DB9) serial ports
- 6 DI and 2 DO
- Expansion: 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 1 x PCI
- TPM 2.0
- Redundant power supply, 100 to 240 VAC/VDC
- Dimensions (W x D x H): 440 x 132.8 x 281.4 mm
- Operating systems: Windows 10 IoT, Linux

FAQs

Q: What does the CTO suffix mean on the DA-820C-T-CTO?
A: CTO stands for configure-to-order. The CPU, RAM and storage are selected at order rather than shipping as a fixed configuration.

Q: Which processors are available for this computer?
A: Options include the Intel Xeon E3-1505M v6 and E3-1505L v6, Core i7-7820EQ, Core i5-7442EQ and Core i3-7102E.

Q: Does it support PRP/HSR redundancy?
A: Yes. PRP/HSR is supported by fitting a compatible expansion module in the PCIe slots.

Q: How much memory and storage can it hold?
A: It has 2 x SODIMM DDR4 slots for up to 64 GB, and 4 hot-swappable 2.5" SATA bays with RAID 0/1/5/10 support. ECC memory is supported only on i3 and Xeon models.

Q: Which standards does it comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substations, and EN 50121-4 for railway wayside applications.

Q: Which operating systems does it support?
A: Windows 10 IoT and Linux are supported.
