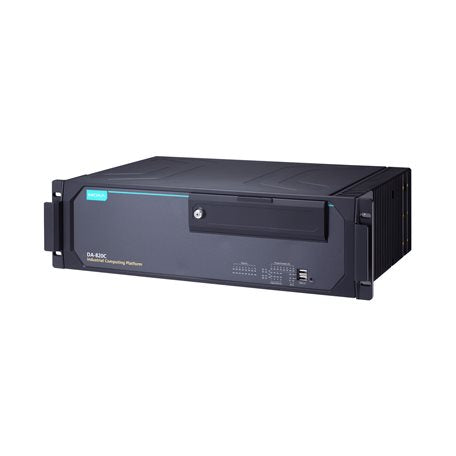

Moxa DA-820C-T(CTO) | DA-820C Rackmount Industrial Computer, Core i3-7102E, CTO, -T

Authorised Moxa Partner

SKU:DA-820C-T(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DA-820C-T(CTO) is a 3U rackmount industrial computer for power automation, built on a 7th Gen Intel Core i3-7102E processor (2.10 GHz, 3M cache). This configure-to-order, -T wide-temperature variant is designed to meet IEC 61850-3, IEEE 1613 and IEC 60255 requirements for substation and utility environments, with PRP/HSR network redundancy available through an optional expansion module.

With four Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, 6 DI and 2 DO, and three display outputs, the DA-820C-T(CTO) suits SCADA and protection-and-control deployments. Four SSD slots with Intel RST RAID support, up to 64GB of DDR4 memory, and optional PRP/HSR and IRIG-B expansion modules let you tailor the build to the application.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power-automation environments
- EN 50121-4 compliant for railway wayside applications
- PRP/HSR network redundancy with the optional expansion module
- MMS server based on IEC 61850-90-4 for integration with Power SCADA
- PTP (IEEE 1588) and IRIG-B time synchronisation with the IRIG-B expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- RAID 0/1/5/10 across four SSD slots for data resilience

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: Intel Core i3-7102E (3M Cache, 2.10 GHz), 7th Gen
- Memory: 2 x SODIMM DDR4 slots, up to 64GB (2400 MHz), ECC supported on i3 and Xeon models
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- I/O: 6 x DI, 2 x DO
- Display: 3 outputs (2 x HDMI, 1 x VGA)
- USB: 6 x USB ports
- Storage: 4 x SSD slots, Intel RST RAID 0/1/5/10
- Form factor: 3U rackmount
- Expansion: PRP/HSR and IRIG-B modules
- Security: TPM 2.0, UEFI Secure Boot
- Operating temperature range: -T wide-temperature variant
- Configuration: configure-to-order (CTO)

FAQs

Q: What processor does the DA-820C-T(CTO) use?
A: It uses a 7th Gen Intel Core i3-7102E processor running at 2.10 GHz with 3M cache.

Q: Does it support PRP/HSR redundancy?
A: Yes. PRP/HSR is supported through an optional PRP/HSR expansion module, which suits substation networks that need seamless redundancy.

Q: What does CTO mean for this model?
A: CTO means configure-to-order. The computer is built to your selected configuration, such as memory, storage and expansion modules, rather than shipping as a fixed bundle.

Q: Which standards does the DA-820C-T(CTO) comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, and EN 50121-4 for railway wayside applications.

Q: How much memory and storage can it hold?
A: It has two SODIMM DDR4 slots supporting up to 64GB at 2400 MHz, plus four SSD slots with Intel RST RAID 0/1/5/10 support.

Q: Can it provide IRIG-B time synchronisation?
A: Yes. IRIG-B time synchronisation is available with the optional IRIG-B expansion module, and PTP (IEEE 1588) is also supported.
