Moxa DA-820C-KLXM-HH | DA-820C 3U Rackmount Computer, Xeon E3, Dual Power, -25 to 55C

Authorised Moxa Partner

SKU:DA-820C-KLXM-HH

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

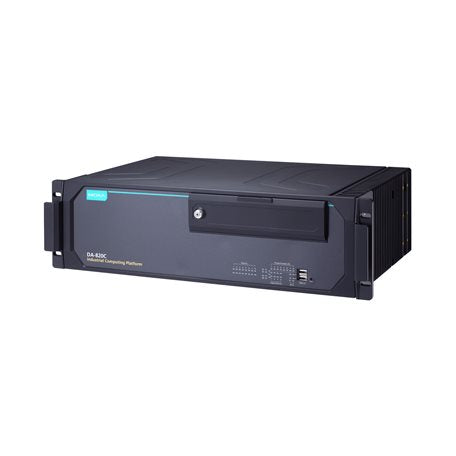

The Moxa DA-820C-KLXM-HH is a 3U industrial x86 rackmount computer built around an Intel Core Xeon E3-1505M v6 processor (4 cores, 8 threads, 3 GHz). This variant features dual 100 to 240 VAC/VDC power inputs and an extended -25 to 55°C operating range, and is supplied without RAM, mSATA storage or an operating system so it can be configured to your exact requirements.

With 4 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, plus multiple PCIe and PCI expansion slots, the DA-820C-KLXM-HH suits power utility automation, substation and other demanding industrial applications. Optional PRP/HSR expansion module support provides network redundancy, and hot-swappable drive bays support Intel RST RAID levels 0, 1, 5 and 10.

Features

- Dual power supply design for added power redundancy
- Supports PRP/HSR technology with an optional PRP/HSR expansion module
- Hot-swappable 2.5" HDD/SSD bays with Intel RST RAID 0/1/5/10
- Wide operating temperature range of -25 to 55°C
- Preinstalled Debian 9 or Windows 10 Enterprise LTSC 64-bit available on request through Moxa sales

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core Xeon E3-1505M v6, 4C/8T, 3 GHz (7th Gen Kaby Lake)
- Memory: 2 x DDR4 sockets, up to 64 GB (RAM not included)
- Network: 4 x Gigabit Ethernet ports
- Serial: 2 x RS-232/422/485 ports
- Digital I/O: 6 x DI, 2 x DO
- Video: 2 x HDMI, 1 x VGA
- USB: 2 x USB 2.0 and 3 x USB 3.0 Type A ports
- Input devices: 2 x PS/2
- Expansion: 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 1 x PCI
- Storage: 1 x mSATA slot and 2 x SSD slots listed on the product page; manual lists 4 x hot-swappable 2.5" HDD/SSD slots with Intel RST RAID 0/1/5/10
- Power: Dual 100 to 240 VAC/VDC inputs
- Operating temperature: -25 to 55°C
- Form factor: 3U rackmount
- Supplied without RAM, SSD or OS

FAQs

Q: Does the DA-820C-KLXM-HH include RAM, storage or an operating system?
A: No. This model ships without RAM, SSD or an operating system, so you can fit the memory and storage configuration your application needs.

Q: How much memory does the DA-820C-KLXM-HH support?
A: It has 2 x DDR4 sockets and supports up to 64 GB of memory.

Q: Can I get an operating system preinstalled?
A: Preinstalled Debian 9 or Windows 10 Enterprise LTSC 64-bit is available on request through Moxa sales.

Q: Does it support PRP/HSR network redundancy?
A: Yes, PRP/HSR is supported with an optional PRP/HSR expansion module.

Q: What is the operating temperature range?
A: The DA-820C-KLXM-HH operates from -25 to 55°C.

Q: Does it support RAID?
A: Yes. Its hot-swappable 2.5" HDD/SSD bays support Intel RST RAID 0, 1, 5 and 10.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
