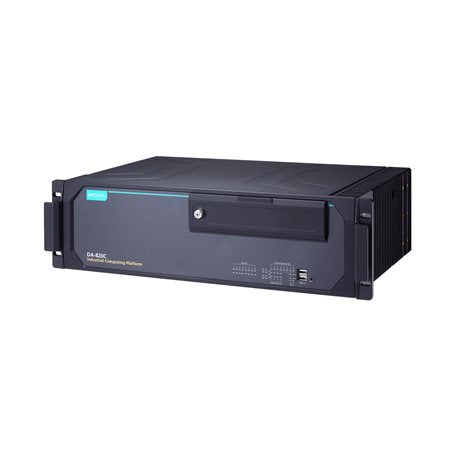

Moxa DA-820C-KLXM-H | DA-820C Series 3U Rackmount Computer, Xeon E3-1505M v6, -25 to 55°C

Authorised Moxa Partner

SKU:DA-820C-KLXM-H

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KLXM-H is a 3U industrial rackmount x86 computer built around an Intel Xeon E3-1505M v6 processor, designed for power automation and substation deployments. This single-power model accepts 100-240 VAC/VDC input and operates across a -25 to 55°C temperature range. It is supplied without RAM, SSD or operating system, so you can configure it to your own specification.

Two SODIMM DDR4 slots support up to 64 GB of memory, with four 2.5-inch drive bays and an mSATA slot for storage. Connectivity includes four Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, six digital inputs, two digital outputs and dual HDMI plus VGA display outputs. The computer is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power-automation use, and EN 50121-4 for railway wayside applications.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Xeon and Core processors
- Up to 64 GB RAM via two built-in SODIMM DDR4 slots
- Supports Intel RST RAID 0/1/5/10 across 4 SSD slots
- PRP/HSR network redundancy (with PRP/HSR expansion module)
- MMS server based on IEC 61850-90-4 for Power SCADA integration
- PTP (IEEE 1588) and IRIG-B time synchronisation (with IRIG-B expansion module)
- Security options including TPM 2.0, UEFI Secure Boot and physical security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Xeon E3-1505M v6 (8M cache, 3 GHz)
- Graphics: Intel HD Graphics P630
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB (2400 MHz, 32 GB per module); ECC supported on Xeon/i3 models
- Storage: 4 x 2.5-inch HDD/SSD slots, 1 x mSATA slot
- Network: 4 x 10/100/1000 Mbps Ethernet (RJ45)
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- Digital I/O: 6 DI, 2 DO
- Display: 2 x HDMI, 1 x VGA
- Other ports: 2 x PS/2, USB 2.0
- Security: TPM v2.0, UEFI Secure Boot
- Time sync: PTP, IRIG-B (with expansion module)
- Power: single 100-240 VAC/VDC input
- Operating temperature: -25 to 55°C
- OS support: Windows 10 IoT Enterprise LTSC 2021/2019 (CTOS), Linux (Ubuntu 22.04, RedHat 9, CentOS 7.9)
- Supplied without RAM, SSD or OS

FAQs

Q: Does the DA-820C-KLXM-H include RAM, storage or an operating system?
A: No. This model is supplied without RAM, SSD or operating system, so memory, drives and OS must be sourced separately.

Q: How much memory does it support?
A: It has two SODIMM DDR4 slots supporting up to 64 GB in total (2400 MHz, 32 GB per module). ECC memory is supported on Xeon and i3 models.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021/2019 (CTOS) and Linux distributions including Ubuntu 22.04, RedHat 9 and CentOS 7.9.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0/1/5/10 is supported across the four 2.5-inch SSD slots.

Q: Does it support PRP/HSR redundancy and IRIG-B time synchronisation?
A: PRP/HSR network redundancy and IRIG-B time synchronisation are available with the respective expansion modules. PTP (IEEE 1588) is also supported.

Q: What industry standards does it comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, and EN 50121-4 for railway wayside applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
