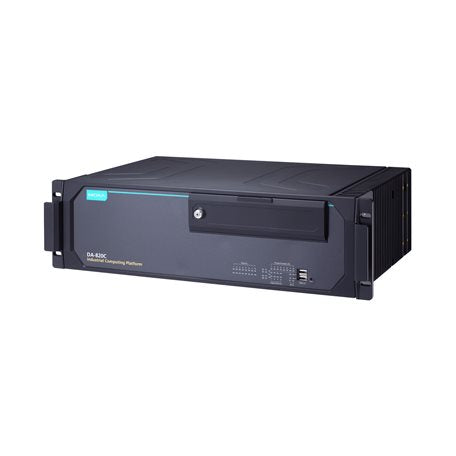

Moxa DA-820C-KL7-HH | DA-820C 3U Rackmount Computer, Core i7-7820EQ, Dual Power

Authorised Moxa Partner

SKU:DA-820C-KL7-HH

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KL7-HH is a 3U industrial x86 rackmount computer built on a 7th Gen Intel Core i7-7820EQ (Kaby Lake) processor with Intel HD Graphics 630. It features dual redundant AC power inputs (100 to 240 VAC/VDC) and an extended -25 to 55°C operating temperature range, and is supplied without RAM, mSATA or operating system so it can be configured to suit each deployment.

With 4 x Gigabit Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs and dual HDMI plus VGA video outputs, it suits substation automation, industrial control and data acquisition applications. It supports Windows 10 IoT Enterprise LTSC and a range of Linux distributions, and can be expanded with Moxa fibre cards and an IRIG-B module.

Features

- 7th Gen Intel Core (Kaby Lake) processor for demanding industrial workloads
- Dual power inputs for redundancy
- Wide -25 to 55°C operating temperature
- Expandable with Moxa DE-GX02-SFP-T and DE-FX02-SFP-T fibre cards and DA-IRIG-B-S-02-T IRIG-B module
- Software-selectable serial ports for flexible device connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-7820EQ, 4C/8T, 8M cache, up to 3.70 GHz
- Graphics: Intel HD Graphics 630
- Memory: 2 x DDR4 SODIMM slots, 64 GB maximum (2400 MHz, 32 GB per module)
- Storage: 2.5-inch HDD/SSD slots, 1 x mSATA slot
- Video: 2 x HDMI, 1 x VGA
- Ethernet: 4 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- I/O: 6 DI, 2 DO, 2 x PS/2
- Power: dual redundant AC inputs, 100 to 240 VAC/VDC
- Operating temperature: -25 to 55°C
- Supplied without RAM, mSATA/SSD and OS
- OS support: Windows 10 IoT Enterprise LTSC 2019/2021 64-bit; Linux SDK for Debian 12, Ubuntu 22.04, RedHat 9, CentOS 7.9

FAQs

Q: Does the DA-820C-KL7-HH include RAM, storage or an operating system?
A: No. This model is supplied without RAM, mSATA/SSD and operating system, so you can fit the memory, storage and OS that suit your application.

Q: How much memory does the DA-820C-KL7-HH support?
A: It has 2 x DDR4 SODIMM slots supporting up to 64 GB in total (2400 MHz, 32 GB per module).

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2019/2021 64-bit, plus Linux SDK support for Debian 12, Ubuntu 22.04, RedHat 9 and CentOS 7.9.

Q: Can the DA-820C-KL7-HH be expanded with fibre networking?
A: Yes. It can be expanded with Moxa DE-GX02-SFP-T and DE-FX02-SFP-T fibre cards, and a DA-IRIG-B-S-02-T IRIG-B module can also be added.

Q: What power input does this model use?
A: It has dual redundant AC power inputs covering 100 to 240 VAC/VDC, so it keeps running if one supply fails.

Q: What serial and I/O ports are available?
A: It provides 2 x software-selectable RS-232/422/485 DB9 serial ports, 6 digital inputs, 2 digital outputs and 4 x Gigabit Ethernet ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
