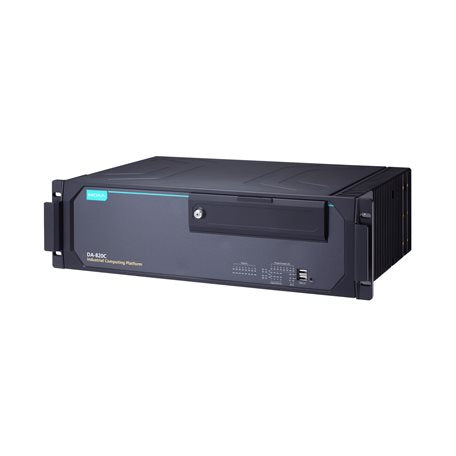

Moxa DA-820C-KL7-H | DA-820C 3U Rackmount Computer, Core i7-7820EQ, -25 to 55°C

Authorised Moxa Partner

SKU:DA-820C-KL7-H

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KL7-H is a 3U x86 rackmount industrial computer built around an Intel Core i7-7820EQ processor, designed for control rooms, substations and other demanding deployments. It runs from a single 100 to 240 VAC/VDC power input and operates across a -25 to 55°C temperature range. This variant is supplied without RAM, SSD or operating system, so you can specify memory, storage and OS to suit the application.

The DA-820C-KL7-H provides four Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, digital I/O, dual HDMI and VGA display outputs, plus mSATA and SSD storage slots. TPM v2.0 and UEFI Secure Boot support secure deployments, and driver and SDK support is available for Windows 10 IoT Enterprise LTSC, Windows Server and several Linux distributions.

Features

- Time synchronisation via PTP, and IRIG-B with an expansion module
- Windows 10 IoT Enterprise LTSC 2021 and 2019 (64-bit) supported via CTOS, with drivers
- Driver support for Windows Server 2022 and 2019
- Linux SDK support for Debian 12, Ubuntu 22.04 LTS, RedHat 9 and CentOS 7.9
- Serial ports with 2 kV isolation, 2 kV surge and 8 kV ESD protection
- Wide -25 to 55°C operating range for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-7820EQ (8M cache, up to 3.70 GHz)
- Graphics: Intel HD Graphics 630
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB (2400 MHz, 32 GB per module)
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 6 x digital inputs, 2 x digital outputs
- 2 x HDMI, 1 x VGA, 2 x PS/2
- 1 x mSATA slot, 2 x SSD slots
- TPM v2.0, UEFI Secure Boot
- Single power input, 100 to 240 VAC/VDC, 50/60 Hz
- Operating temperature: -25 to 55°C
- 3U rackmount form factor
- Supplied without RAM, SSD or OS

FAQs

Q: Does the DA-820C-KL7-H include RAM, storage or an operating system?
A: No. This variant is supplied without RAM, SSD or OS, so memory, storage and operating system must be added separately.

Q: How much memory does the DA-820C-KL7-H support?
A: It has two SODIMM DDR4 slots supporting up to 64 GB in total at 2400 MHz, with up to 32 GB per module.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 and 2019 (64-bit) are supported via CTOS with drivers, and drivers are available for Windows Server 2022 and 2019. Linux SDK support covers Debian 12, Ubuntu 22.04 LTS, RedHat 9 and CentOS 7.9.

Q: What serial and network connectivity does it provide?
A: It provides four 10/100/1000 Mbps RJ45 Ethernet ports and two software-selectable RS-232/422/485 DB9 serial ports with 2 kV isolation.

Q: What is the operating temperature range?
A: The DA-820C-KL7-H operates from -25 to 55°C.

Q: Does it support time synchronisation and secure boot?
A: Yes. It supports PTP time synchronisation, IRIG-B with an expansion module, and includes TPM v2.0 and UEFI Secure Boot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
