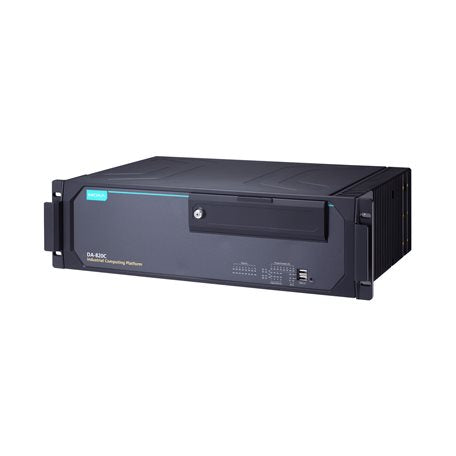

Moxa DA-820C-KL5-HH-T | DA-820C 3U Rackmount Computer, Core i5-7442EQ, -40 to 70C

Authorised Moxa Partner

SKU:DA-820C-KL5-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KL5-HH-T is a 3U rackmount industrial x86 computer built around an Intel Core i5-7442EQ processor. It is designed for harsh environments, with dual redundant 100 to 240 VAC/VDC power inputs and an operating range of -40 to 70°C. Video output is provided by 2x HDMI and 1x VGA, making it suitable for control rooms, substations, transport systems and other demanding industrial deployments.

This model ships without RAM, storage or an operating system, so it can be configured to exact project requirements. It offers two SODIMM DDR4 slots, 1x mSATA slot, 4x SSD slots and multiple PCIe and PCI expansion slots, along with hardware TPM 2.0, UEFI Secure Boot, and PTP and IRIG-B time synchronisation support. It is compatible with Windows 10 IoT Enterprise LTSC and a range of Linux distributions.

Features

- Wide operating temperature range of -40 to 70°C for harsh environments
- Dual redundant AC/DC power inputs for improved uptime
- Multiple PCIe and PCI expansion slots for add-on cards
- Hardware TPM 2.0 and UEFI Secure Boot for platform security
- PTP and IRIG-B time synchronisation support with expansion module
- Supplied without RAM, storage or OS so it can be configured to order
- Supports Windows 10 IoT Enterprise LTSC and Linux (Debian 12, Ubuntu 22.04, RedHat 9, CentOS 7.9)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-7442EQ (6M Cache, up to 2.90 GHz, 4C/4T, 2.1 GHz base)
- Graphics: Intel HD Graphics 630
- Memory: 2x SODIMM DDR4 slots, 64 GB max (2400 MHz, 32 GB per module), supplied without RAM
- Video: 2x HDMI, 1x VGA
- Ethernet: 4x 10/100/1000 Mbps (RJ45)
- Serial: 2x RS-232/422/485 software-selectable (DB9 male)
- Digital I/O: 6 DI, 2 DO
- USB: 3x USB 2.0 (2 front, 1 internal), 3x USB 3.0 (rear)
- Storage: 1x mSATA slot, 4x SSD slots
- Expansion: 1x PCIe x16, 1x PCIe x4, 2x PCIe x1, 1x PCI
- Other ports: 2x PS/2
- Power: dual 100 to 240 VAC/VDC, 50/60 Hz, 1.15 A max
- Operating temperature: -40 to 70°C
- Security: TPM v2.0, UEFI Secure Boot
- Form factor: 3U rackmount

FAQs

Q: Does the DA-820C-KL5-HH-T include RAM, storage or an operating system?
A: No. This model is supplied without RAM, mSATA or SSD storage and an operating system, so you can specify the memory, storage and OS that suit your project.

Q: How much memory does it support?
A: It has 2x SODIMM DDR4 slots supporting up to 64 GB in total (32 GB per module) at 2400 MHz.

Q: What operating temperature range does it support?
A: The DA-820C-KL5-HH-T is rated for operation from -40 to 70°C, suitable for demanding industrial and outdoor-cabinet environments.

Q: What video outputs are available?
A: It provides 2x HDMI and 1x VGA outputs, driven by Intel HD Graphics 630.

Q: What expansion options does it offer?
A: There is 1x PCIe x16, 1x PCIe x4, 2x PCIe x1 and 1x PCI slot, plus 1x mSATA slot and 4x SSD slots for storage.

Q: Which operating systems are supported?
A: Supported operating systems include Windows 10 IoT Enterprise LTSC 2021/2019 (CTOS) and Linux distributions including Debian 12, Ubuntu 22.04, RedHat 9 and CentOS 7.9.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
