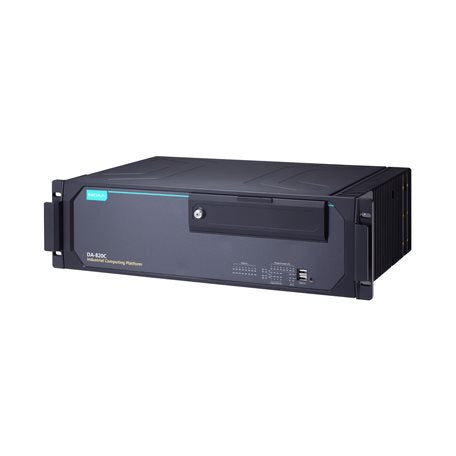

Moxa DA-820C-KL5-H-T | DA-820C 3U Rackmount Computer, Core i5-7442EQ, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820C-KL5-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KL5-H-T is a 3U rackmount x86 industrial computer built on a 7th-gen Intel Core i5-7442EQ quad-core processor. It features a single 100 to 240 VAC/VDC power input and an extended -40 to 70°C operating range, making it suited to harsh environments such as power substations. This model ships without RAM, mSATA/SSD storage or an operating system, so it can be configured to suit your application.

The DA-820C platform provides triple display output with two HDMI and one VGA, four Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, and digital I/O. Five PCI/PCIe expansion slots and four hot-swappable 2.5-inch drive bays with RAID support allow flexible expansion. It is designed for IEC 61850-3 and IEEE 1613 compliant power automation deployments and supports Windows 10 IoT Enterprise LTSC, Windows Server 2019 and Linux Debian.

Features

- IEC 61850-3 and IEEE 1613 compliance for power substation automation
- Hot-swappable 2.5-inch drive trays with Intel RST RAID 0/1/5/10
- Five PCI/PCIe expansion slots for peripheral modules
- Wide -40 to 70°C operating temperature
- Triple display output with 2 x HDMI and 1 x VGA

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-7442EQ, 4C/4T, 2.1 GHz CPU
- 2 x HDMI + 1 x VGA display outputs
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 software-selectable serial ports (DB9 male)
- 6 x DI, 2 x DO
- 2 x PS/2 ports
- 5 x USB ports
- 4 x 2.5-inch HDD/SSD slots (hot-swappable)
- 1 x mSATA slot, internal mini-PCIe socket
- 5 x PCI/PCIe expansion slots
- Single power input, 100 to 240 VAC/VDC
- Operating temperature -40 to 70°C
- Supplied without RAM, mSATA/SSD and OS
- Supported OS: Windows 10 IoT Enterprise LTSC 2021/2019 64-bit, Windows Server 2019, Linux Debian 11/9

FAQs

Q: Does the DA-820C-KL5-H-T include RAM, storage and an operating system?
A: No. This model ships without RAM, mSATA/SSD storage and an operating system, so you can specify the memory, drives and OS to match your deployment.

Q: What operating systems does the DA-820C-KL5-H-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021/2019 64-bit, Windows Server 2019 and Linux Debian 11/9.

Q: What is the operating temperature range?
A: The DA-820C-KL5-H-T operates from -40 to 70°C, suitable for harsh industrial and substation environments.

Q: Does it support redundant power?
A: No. This variant has a single 100 to 240 VAC/VDC power input.

Q: What expansion and storage options are available?
A: It provides five PCI/PCIe expansion slots, four hot-swappable 2.5-inch HDD/SSD slots with RAID 0/1/5/10 support, one mSATA slot and an internal mini-PCIe socket.

Q: Is it suitable for power substation automation?
A: Yes. The DA-820C series is designed to comply with IEC 61850-3 and IEEE 1613 for power substation applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
