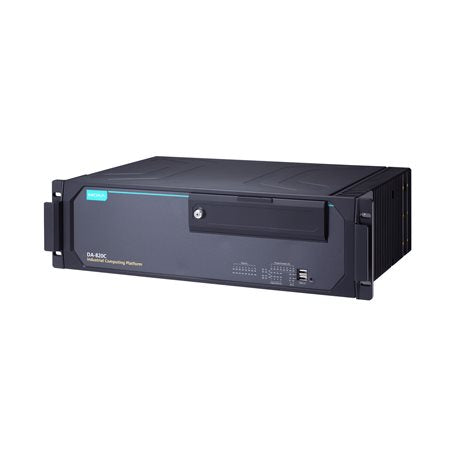

Moxa DA-820C-KL3-HH-T | DA-820C 3U Rackmount Computer, Core i3-7102E, Dual AC, -40 to 70°C

Authorised Moxa Partner

SKU:DA-820C-KL3-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820C-KL3-HH-T is a 3U rackmount industrial x86 computer built on an Intel Core i3-7102E processor with Intel HD Graphics 630. It features dual AC power inputs (100 to 240 VAC/VDC) and an extended operating temperature range of -40 to 70°C, making it suited to power substations, factory automation and other demanding rack-based deployments. This model is supplied without RAM, storage or an operating system, so it can be configured to match your application.

Expansion is flexible, with PCIe x16, PCIe x4, PCIe x1 and PCI slots, four 2.5-inch drive bays and an mSATA slot. Four Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, digital I/O and PTP and IRIG-B time synchronisation support (with expansion module) allow integration into industrial control and monitoring systems. TPM 2.0 and Secure Boot support help protect critical infrastructure.

Features

- Wide operating temperature range of -40 to 70°C
- Dual redundant AC power inputs
- Multiple PCIe and PCI expansion slots for flexible I/O
- TPM 2.0 and Secure Boot support
- PTP and IRIG-B time synchronisation support
- Four Gigabit Ethernet ports and two software-selectable serial ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i3-7102E processor (3M cache, 2.10 GHz)
- Intel HD Graphics 630
- 2 x SODIMM DDR4 slots, up to 64 GB (2400 MHz, 32 GB per module); ECC supported with i3 and Xeon CPUs
- 4 x 2.5-inch HDD/SSD slots, 1 x mSATA slot
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 6 x DI, 2 x DO
- 3 x USB 2.0 (2 front, 1 internal), 3 x USB 3.0 (rear)
- 2 x HDMI, 1 x VGA
- Expansion: 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 1 x PCI
- TPM v2.0
- Time synchronisation: PTP, IRIG-B (with expansion module)
- Dual AC power input, 100 to 240 VAC/VDC
- Operating temperature -40 to 70°C
- Supplied without RAM, SSD or operating system
- Supported OS: Windows 10 IoT Enterprise LTSC 2021/2019 (CTOS); drivers for Windows Server 2022/2019; Linux SDK for Debian 12, Ubuntu 22.04 LTS, RedHat 9, CentOS 7.9

FAQs

Q: Does the DA-820C-KL3-HH-T include RAM, storage and an operating system?
A: No. This model is supplied without RAM, SSD or HDD storage and without an operating system, so you can fit the memory, drives and OS your application requires.

Q: How much memory does the DA-820C-KL3-HH-T support?
A: It has 2 x SODIMM DDR4 slots supporting up to 64 GB in total at 2400 MHz (32 GB per module). ECC memory is supported with i3 and Xeon CPUs.

Q: What storage options are available?
A: The computer provides four 2.5-inch HDD/SSD slots and one mSATA slot.

Q: What operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021/2019 (CTOS) is supported, with drivers available for Windows Server 2022/2019. A Linux SDK is available for Debian 12, Ubuntu 22.04 LTS, RedHat 9 and CentOS 7.9.

Q: What temperature range does this model operate in?
A: It is rated for operation from -40 to 70°C, suitable for harsh industrial environments.

Q: Does it support time synchronisation?
A: Yes. PTP and IRIG-B time synchronisation are supported, with IRIG-B requiring an expansion module.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
