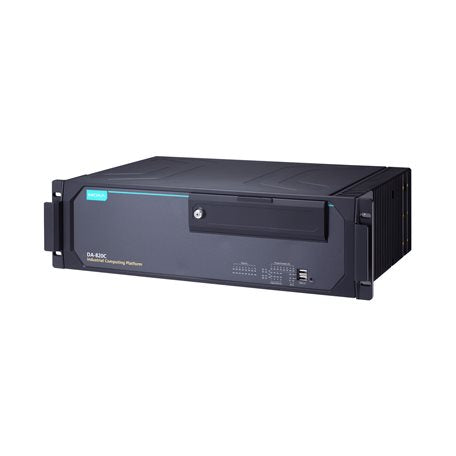

Moxa DA-820C-KL3-H-T | DA-820C 3U Rackmount Computer, Core i3-7102E, -40 to 70°C, No RAM/SSD/OS

Authorised Moxa Partner

SKU:DA-820C-KL3-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DA-820C-KL3-H-T is a 3U rackmount industrial x86 computer for power automation, built around a 7th-generation Intel Core i3-7102E processor. This variant has a single 100 to 240 VAC/VDC power input and an extended -40 to 70°C operating range, and it is supplied without RAM, SSD or operating system so you can specify the memory, storage and software to suit your deployment.

With four Gigabit Ethernet ports, two RS-232/422/485 serial ports, six digital inputs and two digital outputs, it connects to substation and SCADA equipment directly. Two SODIMM ECC DDR4 slots support up to 64 GB RAM, with one mSATA slot and four SSD slots supporting Intel RST RAID 0/1/5/10 for resilient storage.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Xeon and Core processor platform (DA-820C series)
- PRP/HSR network redundancy with optional expansion module
- MMS server based on IEC 61850-90-4 for Power SCADA integration
- PTP (IEEE 1588) and IRIG-B time synchronisation with IRIG-B expansion module

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i3-7102E
- Form factor: 3U rack mount
- Video: 2 x HDMI, 1 x VGA
- Input: 2 x PS/2
- Ethernet: 4 x Gigabit Ethernet ports
- Serial: 2 x RS-232/422/485 ports
- Digital I/O: 6 DIs, 2 DOs
- Memory: two SODIMM ECC DDR4 slots, up to 64 GB (RAM not included)
- Storage: 1 x mSATA slot, 4 x SSD slots, Intel RST RAID 0/1/5/10 (SSD not included)
- Power: single input, 100 to 240 VAC/VDC
- Operating temperature: -40 to 70°C
- Operating system: not included

FAQs

Q: Does the DA-820C-KL3-H-T include RAM, storage or an operating system?
A: No. It is supplied without RAM, SSD or operating system, so you can select the memory, storage and OS for your application.

Q: How much memory does it support?
A: It has two SODIMM ECC DDR4 slots supporting up to 64 GB of RAM in total.

Q: What storage options and RAID levels are available?
A: It provides one mSATA slot and four SSD slots, with Intel RST RAID 0, 1, 5 and 10 support.

Q: What operating temperature range does this model support?
A: This -T variant operates from -40 to 70°C.

Q: Is this model suitable for substation and power automation use?
A: Yes. It is an IEC 61850-3, IEEE 1613 and IEC 60255 compliant power-automation computer, and it is also EN 50121-4 compliant for railway wayside applications.

Q: Can it support PRP/HSR redundancy and IRIG-B time synchronisation?
A: PRP/HSR network redundancy is available with an optional expansion module, and IRIG-B time synchronisation requires the IRIG-B expansion module. PTP (IEEE 1588) is also supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
