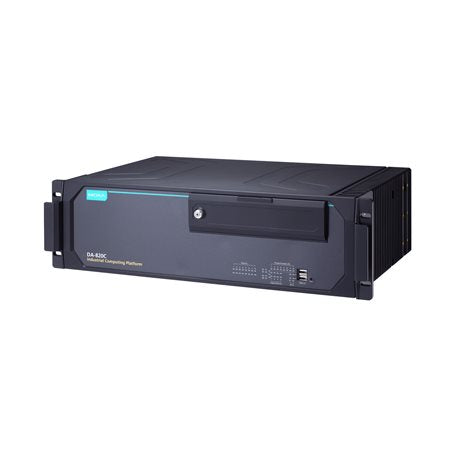

Moxa DA-820C(CTO) | DA-820C 3U Rackmount Industrial Computer, Core i7, CTO

Authorised Moxa Partner

SKU:DA-820C(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DA-820C(CTO) is a 3U rackmount industrial computer built on a 7th generation Intel Core i7 processor, supplied as a configure-to-order (CTO) model. It is designed for power substation automation, with IEC 61850-3, IEEE 1613 and IEC 60255 compliance, and supports PRP/HSR redundancy through an expansion module.

With four hot-swappable 2.5" drive bays supporting Intel RST RAID, dual 100 to 240 VAC/VDC redundant power, four Gigabit LAN ports and flexible PCIe and PCI expansion, the DA-820C suits substation, rail wayside and other demanding industrial computing deployments that need dependable 19-inch rack integration.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- PRP/HSR redundancy support with expansion module
- Redundant dual power supply for high availability
- Hot-swappable drive bays with RAID 0/1/5/10 support
- 7th Gen Intel Core processor performance for demanding workloads
- Expansion options for IRIG-B, serial and Gigabit interfaces

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: 7th Gen Intel Core i7 (configure-to-order)
- Memory: 2 x SODIMM DDR4 ECC slots, up to 64 GB
- Storage: 4 x hot-swappable 2.5" HDD/SSD slots with Intel RST RAID 0/1/5/10
- Expansion: 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 1 x PCI
- Display outputs: 2 x HDMI, 1 x VGA
- USB: 6 x USB ports
- Network: 4 x Gigabit LAN ports
- Serial: 2 x RS-232/422/485 software-selectable ports
- Digital I/O: 6 x DI, 2 x DO
- Power: redundant power supply, 100 to 240 VAC/VDC
- Form factor: 3U 19-inch rackmount

FAQs

Q: What does CTO mean for the DA-820C(CTO)?
A: CTO stands for configure-to-order. The unit is built to your chosen specification, here based on a 7th Gen Intel Core i7 CPU, with memory, storage and expansion modules selected to suit your deployment.

Q: Does the DA-820C support PRP/HSR redundancy?
A: Yes. PRP/HSR support is provided through a PRP/HSR expansion module installed in the computer's expansion slots.

Q: Which standards does the DA-820C comply with?
A: It is designed for power substation automation and complies with IEC 61850-3, IEEE 1613 and IEC 60255. It also meets EN 50121-4 for railway wayside applications.

Q: How much memory and storage can it hold?
A: It supports up to 64 GB of DDR4 ECC memory across 2 SODIMM slots, and has four hot-swappable 2.5" HDD/SSD bays with Intel RST RAID 0/1/5/10.

Q: What expansion slots are available?
A: The DA-820C provides 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1 and 1 x PCI slot for adding serial, network, IRIG-B and other interface cards.

Q: What power input does it accept?
A: It has a redundant power supply accepting 100 to 240 VAC/VDC, suitable for typical substation and industrial power environments.
