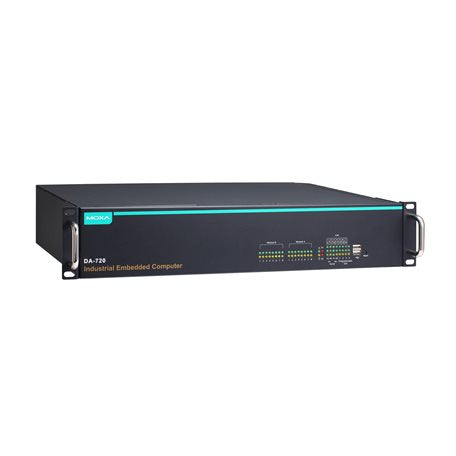

Moxa DA-720(CTO) | DA-720 2U Rackmount Industrial Computer, Core i5-6300U, CTO

Authorised Moxa Partner

SKU:DA-720(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-720(CTO) is a 2U, 19-inch x86 rackmount industrial computer built around a dual-core Intel Core i5-6300U processor (2.4 GHz base). It is designed for power substation automation and railway wayside applications, with IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4 compliance, dual power input and an extended operating temperature range of -25 to 55°C. This configure-to-order variant ships without mSATA, RAM or operating system, so it can be specified to suit each deployment.

With 14 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports and 3 proprietary PCIe expansion slots, the DA-720 suits network-dense control and communications roles. TPM v2.0 and UEFI Secure Boot support secure operation, and the platform supports PRP/HSR redundancy when paired with the optional expansion module.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation systems
- EN 50121-4 compliant for railway wayside applications
- 6th Gen Intel Core (Skylake) i5-6300U processor
- 14 Gigabit Ethernet ports for network redundancy
- Dual power input for redundant supply
- Supports PRP/HSR technology with the PRP/HSR expansion module
- 3 PCIe expansion slots for expansion modules
- User-defined key part indicators trigger alerts via relay and SNMP traps for predictive maintenance
- Configure-to-order model supplied without mSATA, RAM or OS
- Robust 2U 19-inch metal rackmount case

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Core i5-6300U processor (2.4 GHz base, up to 3.00 GHz, 3M cache, dual core)
- Intel HD Graphics 520
- 2 x SODIMM DDR4 slots (no memory pre-installed on the CTO model)
- 14 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x software-selectable RS-232/422/485 serial ports (terminal block)
- 2 x USB 2.0 (front) and 2 x USB 3.0 (rear)
- 3 x proprietary PCIe expansion slots
- 1 x 2.5-inch HDD/SSD slot and 1 x mSATA slot (mSATA not included)
- Video output: 1 x DVI-D and 1 x VGA (15-pin D-sub)
- Dual power input: 100-240 VAC / 100-240 VDC
- Operating temperature: -25 to 55°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions (without ears): 440 x 301 x 90 mm
- Weight: 6,500 g
- Installation: 19-inch rack mounting, 2U
- TPM v2.0 and UEFI Secure Boot
- Compliance: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4
- MTBF: 138,319 hrs (Telcordia SR332)

FAQs

Q: Does the DA-720(CTO) include memory, storage or an operating system?
A: No. This configure-to-order model ships without mSATA, RAM or an operating system. It has 2 SODIMM DDR4 slots, a 2.5-inch HDD/SSD slot and an mSATA slot for you to populate.

Q: Which operating systems does the DA-720 support?
A: The DA-720 platform supports Linux Debian 8 (kernel v4.1) and Windows 10 Embedded IoT Enterprise 2016 LTSB, with Windows 10 available through configure-to-order.

Q: What industry standards does the DA-720 meet?
A: It complies with IEC 61850-3 and IEEE 1613 for power substations, IEC 60255 for protection relays and EN 50121-4 for railway wayside applications.

Q: How many network and serial ports does it provide?
A: It provides 14 x 10/100/1000 Mbps RJ45 Ethernet ports and 2 software-selectable RS-232/422/485 serial ports on terminal blocks.

Q: What operating temperature range does this model support?
A: The DA-720(CTO) is rated for operation from -25 to 55°C, suitable for harsh substation and wayside environments.

Q: Can the DA-720 be expanded?
A: Yes. It has 3 proprietary PCIe expansion slots, which can take expansion modules such as a PRP/HSR module.
