Moxa DA-720-C7-DPP-LX | DA-720 2U Rackmount Industrial Computer, Core i7-6600U, 4GB, 8GB mSATA

Authorised Moxa Partner

SKU:DA-720-C7-DPP-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

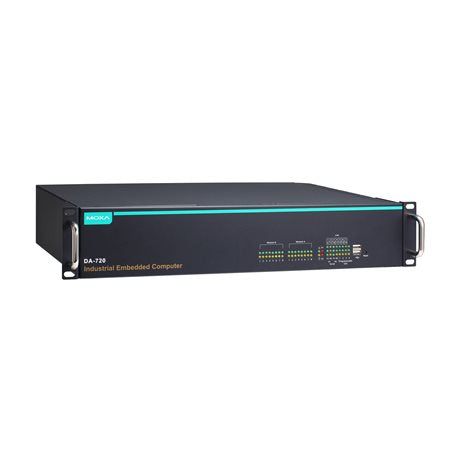

The Moxa DA-720-C7-DPP-LX is a 2U rackmount industrial computer built on a 6th Gen Intel Core i7-6600U 2.6 GHz dual-core processor, with 4GB RAM, 8GB mSATA storage and Linux Debian 8 64-bit pre-installed. Dual power inputs and an operating range of -25 to 55°C suit it to power substation automation and railway wayside deployments, backed by IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4 compliance.

With 14 Gigabit Ethernet ports, isolated RS-232/422/485 serial ports and three PCIe expansion slots, the DA-720 series provides the network density and I/O flexibility needed for substation gateways and data concentrators. Moxa expansion modules add further serial ports, LAN ports, PRP/HSR, IRIG-B and dual SATA capability.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 6th Gen Intel Core (Skylake) platform
- 14 Gigabit Ethernet ports for network redundancy
- Dual power design for resilient operation
- Supports PRP/HSR with an optional expansion module
- Expansion modules available for extra serial ports, LAN ports, PRP/HSR, IRIG-B and dual SATA

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-6600U, 2.6 GHz dual-core (4M cache, up to 3.40 GHz)
- Graphics: Intel HD Graphics 520
- Memory: 2 x SODIMM DDR4 slots, 4GB RAM pre-installed
- Storage: 8GB mSATA pre-installed (OS), 1 x SATA III for storage expansion
- Network: 14 x 10/100/1000 Mbps Gigabit Ethernet ports
- Serial: 2 x isolated RS-232/422/485 (terminal block)
- USB: 4 x USB ports
- Display: 1 x VGA, 1 x DVI-D
- Expansion: 3 x PCIe slots for Moxa expansion modules
- Power: dual inputs, 100-240 V AC/DC
- Operating temperature: -25 to 55°C
- Form factor: 19-inch 2U rackmount
- Standards: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4
- Operating system: Linux Debian 8 (64-bit)

FAQs

Q: What operating system does the DA-720-C7-DPP-LX ship with?
A: It ships with Linux Debian 8 64-bit pre-installed on the 8GB mSATA drive.

Q: What industry standards does this computer comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: Can the storage and memory be expanded?
A: Yes. It has two SODIMM DDR4 slots, with 4GB installed in this SKU, plus one SATA III interface for additional storage beyond the 8GB mSATA OS drive.

Q: Does it support PRP/HSR redundancy?
A: PRP/HSR is supported with an optional Moxa expansion module installed in one of the three PCIe expansion slots.

Q: What is the operating temperature range?
A: The DA-720-C7-DPP-LX operates from -25 to 55°C.

Q: How many network and serial ports does it provide?
A: It provides 14 x 10/100/1000 Mbps Gigabit Ethernet ports and 2 x isolated RS-232/422/485 serial ports, with more available through expansion modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
