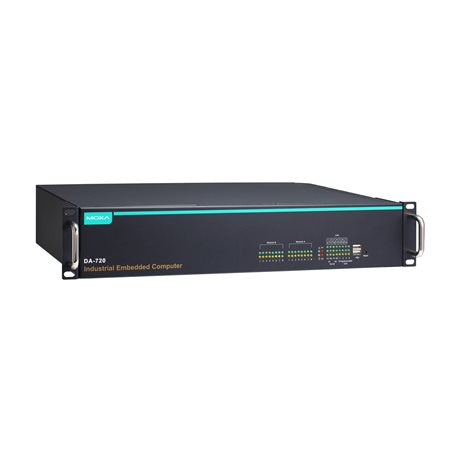

Moxa DA-720-C7-DPP | DA-720 Rackmount Industrial Computer, Core i7-6600U, Dual Power

Authorised Moxa Partner

SKU:DA-720-C7-DPP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-720-C7-DPP is a 2U 19-inch x86 rackmount industrial computer built around a 6th Gen Intel Core i7-6600U dual-core CPU running at 2.6 GHz. It offers 14 Gigabit Ethernet ports, 3 PCIe expansion slots and dual power inputs, and is designed for power substation automation and other harsh environments. This variant ships without mSATA storage, RAM or an operating system, and operates across a -25 to 55°C temperature range.

Compliance with IEC 61850-3, IEEE 1613 and IEC 60255 makes it suited to substation deployments, while EN 50121-4 compliance supports railway wayside applications. Dual SODIMM DDR4 slots, isolated serial ports, VGA and DVI-D video outputs, TPM v2.0 and UEFI Secure Boot provide a flexible, secure platform for custom builds. PRP/HSR redundancy is available with the optional expansion module.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- Dual power inputs for a highly reliable design
- PRP/HSR support with optional PRP/HSR expansion module
- High interface density in a standard 2U 19-inch rackmount chassis
- Wide -25 to 55°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-6600U, dual-core, 2.6 GHz, up to 3.40 GHz, 4M cache
- Graphics: Intel HD Graphics 520
- Memory: 2 x SODIMM DDR4 slots (RAM not included)
- Storage and OS: supplied without mSATA, RAM or operating system
- Ethernet: 14 x Gigabit Ethernet ports
- Serial: 2 x isolated RS-232/422/485 ports
- USB: 4 x USB ports
- Expansion: 3 x proprietary PCIe slots
- Video: 1 x VGA, 1 x DVI-D
- Security: TPM v2.0, UEFI Secure Boot
- Power: dual power inputs
- Operating temperature: -25 to 55°C
- Dimensions (without ears): 440 x 301 x 90 mm
- Weight: 6,500 g
- Housing: metal, 19-inch 2U rack mounting
- Standards: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4

FAQs

Q: Does the DA-720-C7-DPP include RAM, storage or an operating system?
A: No. This variant is supplied without mSATA storage, RAM and an operating system, so you can fit the memory, storage and OS that suit your application.

Q: What type of memory does it use?
A: It has 2 x SODIMM DDR4 slots. Memory is not included with this model.

Q: Is it suitable for power substation use?
A: Yes. It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255, which are the standards required for substation automation equipment.

Q: Can it be used in railway applications?
A: Yes. It complies with EN 50121-4 for railway wayside applications.

Q: Does it support PRP/HSR redundancy?
A: PRP/HSR is supported when the optional PRP/HSR expansion module is installed.

Q: What network and expansion interfaces does it provide?
A: It provides 14 x Gigabit Ethernet ports, 2 x isolated RS-232/422/485 serial ports, 4 x USB ports and 3 x proprietary PCIe expansion slots.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
