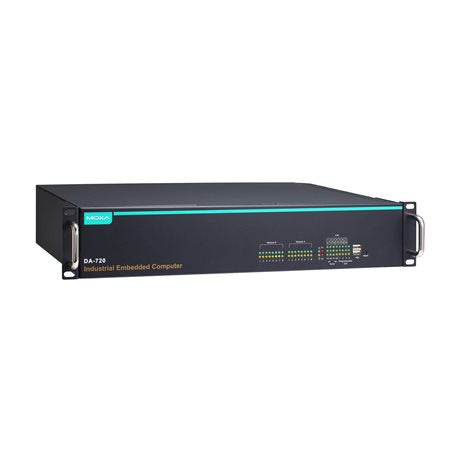

Moxa DA-720-C5-DPP-LX | DA-720 Series 2U Rackmount Computer, Core i5-6300U, 4GB, Linux

Authorised Moxa Partner

SKU:DA-720-C5-DPP-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-720-C5-DPP-LX is a 2U 19-inch rackmount x86 industrial computer built around a 6th Gen Intel Core i5-6300U dual-core CPU running at 2.4 GHz. It ships with 4GB RAM, 8GB mSATA storage and Linux Debian 8 64-bit preinstalled, with dual power inputs for redundancy. It is designed for power substation automation and is compliant with IEC 61850-3, IEEE 1613 and IEC 60255.

With 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 serial ports and 3 PCIe expansion slots, the DA-720 Series suits substation gateways, data concentrators and railway wayside applications. It operates from -25 to 55°C and is also EN 50121-4 compliant.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 6th Gen Intel Core (Skylake) platform
- 14 Gigabit Ethernet ports for network redundancy
- 3 PCIe slots for expansion modules including serial, LAN, PRP/HSR, SATA SSD/HDD and IRIG-B
- Dual power inputs, with PRP/HSR support when fitted with the PRP/HSR expansion module
- Security options including TPM 2.0 and UEFI Secure Boot
- PTP (IEEE 1588) and IRIG-B time synchronisation (IRIG-B with the IRIG-B module)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-6300U, dual-core, 2.4 GHz, up to 3.00 GHz, 3M cache
- Graphics: Intel HD Graphics 520
- Memory: 4GB RAM preinstalled, 2 x SODIMM DDR4 slots
- Storage: 8GB mSATA preinstalled, 1 x SATA III for storage expansion
- Networking: 14 x Gigabit Ethernet ports
- Serial: 2 x isolated RS-232/422/485 ports
- USB: 4 x USB ports
- Display: 1 x VGA, 1 x DVI-D
- Expansion: 3 x PCIe slots
- Power: dual power input
- Operating temperature: -25 to 55°C
- Operating system: Linux Debian 8 64-bit
- Form factor: 19-inch 2U rackmount
- Standards: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4

FAQs

Q: What operating system is preinstalled on the DA-720-C5-DPP-LX?
A: This model ships with Linux Debian 8 64-bit preinstalled.

Q: What power substation standards does it comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255, and also meets EN 50121-4 for railway wayside use.

Q: Does it support dual power input?
A: Yes. This model has dual power inputs. PRP/HSR redundancy is available with the PRP/HSR expansion module.

Q: Can I add more serial, LAN or storage capacity?
A: Yes. The three PCIe slots accept expansion modules for serial, LAN, PRP/HSR, SATA SSD/HDD and IRIG-B. The unit also has a SATA III port and 2 SODIMM DDR4 slots for storage and memory expansion.

Q: What is the operating temperature range?
A: The DA-720-C5-DPP-LX operates from -25 to 55°C.

Q: How many network and serial ports does it have?
A: It has 14 Gigabit Ethernet ports and 2 isolated RS-232/422/485 serial ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
