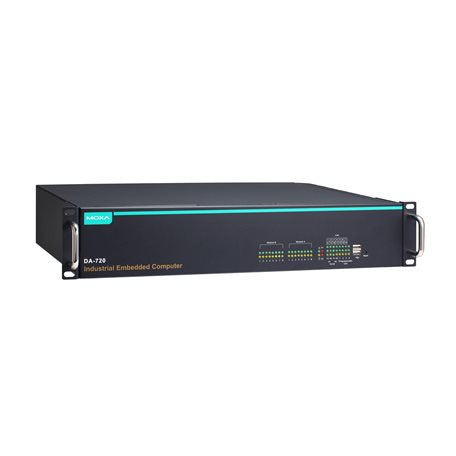

Moxa DA-720-C5-DPP | DA-720 2U Rackmount Industrial Computer, Core i5-6300U, Dual Power

Authorised Moxa Partner

SKU:DA-720-C5-DPP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-720-C5-DPP is a 2U rackmount x86 industrial computer built for power substation automation. It is powered by a 6th Gen Intel Core i5-6300U dual core processor (2.4 GHz base) and provides 14 Gigabit Ethernet ports, dual power supply inputs and an operating temperature range of -25 to 55°C. It is IEC 61850-3 compliant, making it suited to demanding utility and substation environments.

This SKU is supplied without mSATA storage, RAM or an operating system, so it can be configured to your own build requirements with 2 x SODIMM DDR4 sockets, 1 x mSATA and 1 x SATA III. Three PCIe slots accept expansion modules, including PRP/HSR LAN, dual 2.5" SATA SSD/HDD, IRIG-B time synchronisation and DI/DO modules, for tailoring the computer to your application.

Features

- Dual power supply inputs for power redundancy
- IEC 61850-3 compliant for power substation automation
- Expandable to up to 22 Gigabit LAN ports plus 16 serial ports, or 14 Gigabit LAN ports plus 24 serial ports, using expansion modules
- Optional PRP/HSR LAN, dual 2.5" SATA III SSD/HDD, IRIG-B time synchronisation and DI/DO modules
- User-defined key part indicators (KPIs) trigger alerts via relay and SNMP traps for predictive maintenance
- Wide operating temperature range of -25 to 55°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-6300U (3M Cache, up to 3.00 GHz), 2.4 GHz base, dual core
- Memory: 2 x SODIMM DDR4 sockets (RAM not included)
- Storage: 1 x mSATA and 1 x SATA III (mSATA and OS not included)
- Network: 14 x Gigabit Ethernet ports (RJ45)
- Expansion: 3 x PCIe slots for expansion modules
- USB: 4 x USB ports
- Serial: 2 x isolated RS-232/422/485 ports (terminal block, 2 kV isolation)
- Power: dual power supply inputs
- Operating temperature: -25 to 55°C
- Compliance: IEC 61850-3
- Form factor: 2U rackmount

FAQs

Q: Does the DA-720-C5-DPP include RAM, mSATA storage or an operating system?
A: No. This SKU is supplied without mSATA, RAM or an operating system. It has 2 x SODIMM DDR4 sockets, 1 x mSATA and 1 x SATA III so you can fit your own components.

Q: What processor does this model use?
A: It uses an Intel Core i5-6300U dual core processor with a 2.4 GHz base clock and up to 3.00 GHz, with 3M cache.

Q: How many network ports does it have and can this be expanded?
A: It has 14 x Gigabit Ethernet RJ45 ports. Using expansion modules in the PCIe slots it can support up to 22 Gigabit LAN ports plus 16 serial ports, or 14 Gigabit LAN ports plus 24 serial ports.

Q: Is it suitable for power substation use?
A: Yes. It is IEC 61850-3 compliant and designed for power substation automation, with dual power inputs and a -25 to 55°C operating temperature range.

Q: What expansion modules are available for the DA-720 series?
A: Optional modules include a PRP/HSR LAN module, a dual 2.5" SATA III SSD/HDD module, an IRIG-B time synchronisation module and a DI/DO module.

Q: What does the DPP in the model number mean?
A: DPP indicates dual power supply inputs, giving power redundancy for critical installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
