Moxa DA-682C-T(CTO) | DA-682C 2U Rackmount Computer, Celeron 3965U, Dual Power, -40 to 70C

Authorised Moxa Partner

SKU:DA-682C-T(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

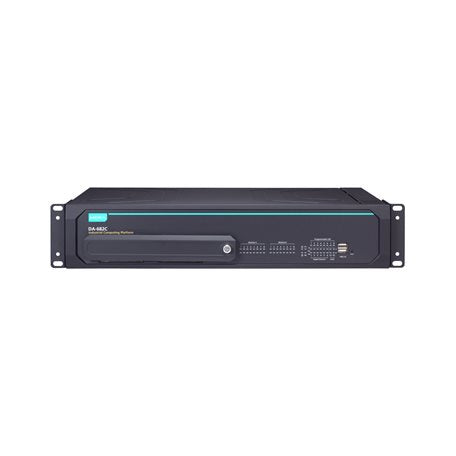

The Moxa DA-682C-T (CTO) is a rugged 2U, 19-inch fanless x86 rackmount industrial computer built on an Intel Celeron 3965U processor, with redundant 100-240 VAC/VDC power inputs and a -40 to 70°C operating temperature range. It is designed for power substation automation, protection relay and railway wayside applications, and complies with IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4. This CTO build ships without RAM, storage or operating system, so it can be configured to suit the deployment.

The DA-682C Series provides two SODIMM DDR4 slots (up to 32 GB), two hot-swappable 2.5-inch HDD/SSD trays with Intel RST RAID 0/1, six Gigabit LAN ports, two HDMI outputs, six USB ports and two software-selectable RS-232/422/485 serial ports. Two independent expansion slots accept optional 8-port serial or 4-port Gigabit LAN modules, which are sold separately. Windows 10 Embedded IoT Enterprise 2019 LTSC and Debian 9 are available through Moxa's CTOS service.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation systems
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel processor platform
- Two hot-swappable 2.5-inch HDD/SSD storage trays with Intel RST RAID 0/1
- Redundant power supply inputs, 100 to 240 VAC/VDC
- Two independent expansion slots for 8-port RS-232/422/485 or 4-port Gigabit LAN modules (sold separately)
- Wide -40 to 70°C operating temperature range
- Fanless design for reliable operation in harsh environments
- CTO configuration lets you specify memory, storage and operating system

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Celeron 3965U Processor (2M Cache, 2.2 GHz)
- Intel HD Graphics 630
- 2 x SODIMM DDR4 slots, 32 GB maximum (no RAM included)
- 2 x hot-swappable 2.5-inch HDD/SSD slots with Intel RST RAID 0/1
- 6 x 10/100/1000 Mbps RJ45 LAN ports
- 2 x HDMI video outputs
- 3 x USB 2.0 and 3 x USB 3.0 host ports
- 2 x RS-232/422/485 software-selectable serial ports (terminal block), 300 bps to 115.2 kbps
- Redundant dual power input, 100-240 VAC/VDC
- Operating temperature -40 to 70°C (-40 to 158°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Dimensions without ears: 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in)
- Weight: 9,900 g (21.82 lb)
- 2U 19-inch rackmount, metal housing
- MTBF: 365,750 hrs (Telcordia SR332)
- Safety: UL 60950-1, IEC 60950-1, UL 62368-1, IEC 62368-1
- Package includes: computer, rack-mounting ear, quick installation guide, warranty card

FAQs

Q: Does the DA-682C-T (CTO) include RAM, storage or an operating system?
A: No. This CTO build ships without RAM, SSD or HDD storage and without an operating system. It has two SODIMM DDR4 slots supporting up to 32 GB and two 2.5-inch drive slots.

Q: What industry standards does this computer comply with?
A: It is designed for power substation automation under IEC 61850-3 and IEEE 1613, protection relay applications under IEC 60255, and railway wayside applications under EN 50121-4.

Q: Can I add more serial or LAN ports?
A: Yes. The two independent expansion slots accept optional 8-port RS-232/422/485 serial modules or 4-port Gigabit LAN modules, which are sold separately.

Q: What operating systems are supported?
A: Windows 10 Embedded IoT Enterprise 2019 LTSC 64-bit and Linux Debian 9 are available through Moxa's CTOS service.

Q: Does it support RAID?
A: Yes. The two hot-swappable 2.5-inch HDD/SSD trays support Intel RST RAID 0 and RAID 1.

Q: What power input does it use?
A: It has redundant dual power inputs that accept 100 to 240 VAC/VDC, so it can be fed from AC or DC supplies.
