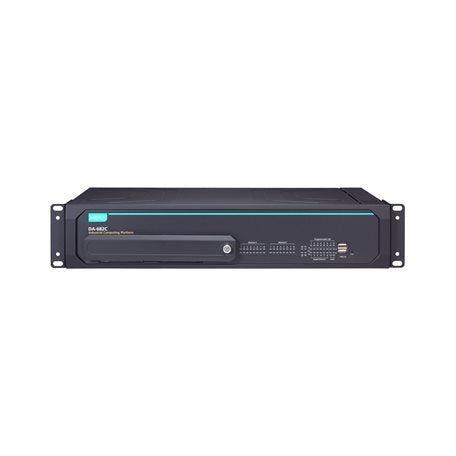

Moxa DA-682C-KL7-HH-T | DA-682C 2U Rackmount Computer, Core i7-7600U, Dual Power, -40 to 70C

Authorised Moxa Partner

SKU:DA-682C-KL7-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL7-HH-T is a 2U rackmount x86 embedded computer built around a 7th Gen Intel Core i7-7600U processor, designed for power substation automation. This wide-temperature model operates from -40 to 70°C, runs on dual redundant 100 to 240 VAC/VDC power inputs, and is supplied without RAM, SSD or operating system so it can be configured to suit the deployment.

It complies with IEC 61850-3, IEEE 1613 and IEC 60255, and also meets EN 50121-4 for railway wayside applications. Connectivity includes 6 x Gigabit LAN ports, 2 x HDMI outputs, 6 USB ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs and 2 optional expansion module slots.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation systems
- 7th Generation Intel Core processor
- DDR4 memory, up to 32GB
- Two hot-swappable 2.5-inch HDD/SSD storage expansion trays
- EN 50121-4 compliant for railway wayside applications
- Redundant power supply (100 to 240 VAC/VDC)
- Wide operating temperature range of -40 to 70°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 7th Gen Intel Core i7-7600U (2.8GHz)
- Form factor: 2U rackmount, 19-inch
- Memory: DDR4 2133MHz DIMM slots, up to 32GB (not included)
- Storage: 2 x hot-swappable 2.5-inch SATA HDD/SSD trays, 1 x mSATA (storage not included)
- Display: 2 x HDMI
- LAN: 6 x 10/100/1000 Mbps (RJ45)
- USB: 6 ports
- Serial: 2 x 3-in-1 RS-232/422/485
- Digital I/O: 6 DI, 2 DO
- Expansion: 2 x optional expansion module slots
- Power: dual redundant 100 to 240 VAC/VDC
- Operating temperature: -40 to 70°C
- Certifications: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, CE, FCC Class A, RoHS
- Supplied without RAM, SSD or operating system

FAQs

Q: Does the DA-682C-KL7-HH-T include RAM, storage or an operating system?
A: No. This SKU is supplied without RAM, SSD or operating system. It supports DDR4 2133MHz memory up to 32GB, two hot-swappable 2.5-inch SATA trays and one mSATA slot.

Q: What operating temperature range does this model support?
A: This is the wide-temperature model, rated for operation from -40 to 70°C.

Q: What power inputs does it use?
A: It has dual redundant power inputs accepting 100 to 240 VAC/VDC.

Q: Which standards does the DA-682C-KL7-HH-T comply with?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: What interfaces and expansion options are available?
A: It provides 6 x Gigabit LAN, 2 x HDMI, 6 USB ports, 2 x RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, plus 2 optional expansion module slots.

Q: What form factor is it and how is it mounted?
A: It is a 2U, 19-inch rackmount computer suited to standard rack installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
