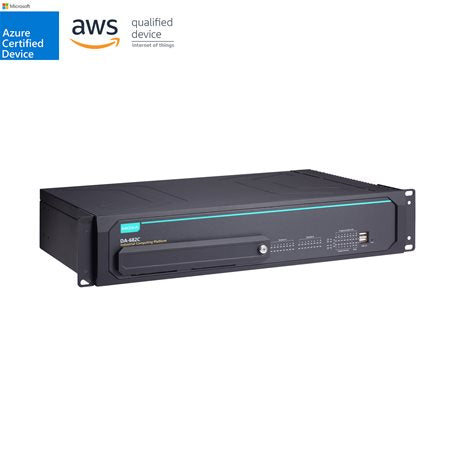

Moxa DA-682C-KL7-H-T | DA-682C 2U Rackmount Computer, Core i7-7600U, Single Power, -40 to 70°C

Authorised Moxa Partner

SKU:DA-682C-KL7-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL7-H-T is a 2U rackmount industrial computer built around a 7th Gen Intel Core i7-7600U processor, designed for power substation automation and other demanding field deployments. This single power supply model operates across a -40 to 70°C temperature range and is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for substation use.

It provides 6 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs for connecting to substation and industrial equipment. Storage is flexible with one mSATA slot and two hot-swappable 2.5-inch HDD/SSD trays, while memory scales to 32 GB DDR4. The unit supports Windows 10 IoT Enterprise and Linux, and is also EN 50121-4 compliant for railway wayside applications.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Core i7 processor
- Two hot-swappable 2.5-inch HDD/SSD storage trays
- Wide -40 to 70°C operating temperature range
- Supports Windows 10 IoT Enterprise and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i7-7600U (7th Gen) processor
- Intel HD Graphics 630
- 2 x SODIMM DDR4 slots, 32 GB maximum (2133 MHz, 16 GB per module)
- 2 x HDMI display outputs
- 2 x PS/2 ports
- 6 x Gigabit Ethernet ports
- 2 x RS-232/422/485 serial ports
- 6 x digital inputs, 2 x digital outputs
- 1 x mSATA slot
- 2 x 2.5-inch HDD/SSD slots (hot-swappable trays)
- Single power input, 100-240 VAC/VDC, 0.9 A maximum
- Operating temperature -40 to 70°C
- Dimensions without ears 440 x 282 x 88 mm, weight 9,900 g
- 19-inch rack mounting, 2U, metal housing
- MTBF 365,750 hrs (Telcordia SR332)

FAQs

Q: What applications is the Moxa DA-682C-KL7-H-T designed for?
A: It is designed for power substation automation and is compliant with IEC 61850-3, IEEE 1613 and IEC 60255. It is also EN 50121-4 compliant for railway wayside applications.

Q: What operating temperature range does it support?
A: This model operates from -40 to 70°C.

Q: Does this model have a redundant power supply?
A: No. This SKU has a single power input rated 100-240 VAC/VDC, 0.9 A maximum.

Q: How much memory and storage can it support?
A: It has 2 SODIMM DDR4 slots supporting up to 32 GB (16 GB per module at 2133 MHz). Storage options are one mSATA slot and two hot-swappable 2.5-inch HDD/SSD trays.

Q: Which operating systems does it support?
A: It supports Windows 10 IoT Enterprise and Linux.

Q: What network and I/O connectivity is included?
A: It includes 6 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs, 2 HDMI outputs and 2 PS/2 ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
