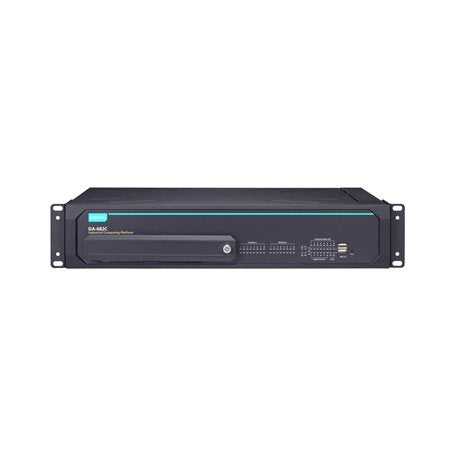

Moxa DA-682C-KL5-HH-T | DA-682C 2U Rackmount Computer, Core i5-7300U, 6 GbE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-682C-KL5-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL5-HH-T is a 2U, 19-inch rackmount industrial x86 computer built around a 7th Gen Intel Core i5-7300U processor. It offers 6 Gigabit Ethernet ports, 2 HDMI outputs, 2 RS-232/422/485 serial ports and 6 DI/2 DO, with dual redundant power inputs (100-240 VAC/VDC) and a -40 to 70°C operating range. It ships without RAM, storage or an operating system, so it can be configured to suit each deployment.

Designed for power substation automation and railway wayside applications, it complies with IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4. Two hot-swappable 2.5-inch drive trays, an mSATA slot and two expansion module slots for LAN or serial modules give flexibility for control, communication and data acquisition roles in demanding environments.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Core i5 processor
- Redundant power supply (100 to 240 VAC/VDC)
- Two hot-swappable 2.5-inch HDD/SSD trays
- Modular design with two expansion slots for LAN or serial modules
- Rugged 2U 19-inch rackmount enclosure

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-7300U (2C/4T, 2.6 GHz base, up to 3.5 GHz, 3M cache)
- Graphics: Intel HD Graphics 630, 2 x HDMI
- Memory: 2 x SODIMM DDR4 slots, 32 GB max (2133 MHz, 16 GB per module); RAM not included
- Storage: 2 x hot-swappable 2.5-inch HDD/SSD slots plus 1 x mSATA slot; storage not included; Intel RST RAID 0/1 supported
- Network: 6 x Gigabit Ethernet ports
- Serial: 2 x RS-232/422/485 (3-in-1) ports
- I/O: 6 DI, 2 DO, 2 x PS/2, 6 x USB
- Expansion: 2 module slots (e.g. DN-LN04-RJ 4-port LAN, DN-SP08-I 8-port serial)
- Power: dual redundant inputs, 100-240 VAC/VDC, 50/60 Hz, 0.9 A max
- Operating temperature: -40 to 70°C
- Dimensions (without ears): 440 x 282 x 88 mm
- Weight: 9,900 g
- Mounting: 19-inch rack, 2U metal housing
- MTBF: 365,750 hrs (Telcordia SR-332)
- Supported OS: Windows 10 IoT Enterprise LTSC 2019 (64-bit), Linux Debian 9 (OS not included)

FAQs

Q: Does the DA-682C-KL5-HH-T include RAM, storage or an operating system?
A: No. This model ships without RAM, SSD/HDD storage or an operating system. It has 2 SODIMM DDR4 slots (32 GB maximum), 2 hot-swappable 2.5-inch drive bays and an mSATA slot for you to populate.

Q: What operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2019 (64-bit) and Linux Debian 9 are supported. The Linux SDK also supports Debian 12, Ubuntu 22.04 LTS, RedHat 9 and CentOS 7.9. The operating system must be supplied separately.

Q: Can I add more network or serial ports?
A: Yes. The two module expansion slots accept Moxa modules such as the DN-LN04-RJ 4-port LAN module and the DN-SP08-I 8-port serial module.

Q: Is it suitable for power substation and rail applications?
A: Yes. It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for substation automation, and EN 50121-4 for railway wayside use.

Q: What power input does it use?
A: It has dual redundant power inputs accepting 100 to 240 VAC/VDC at 50/60 Hz, with a maximum current of 0.9 A.

Q: Does it support RAID?
A: Yes. The two hot-swappable 2.5-inch drive slots support Intel RST RAID 0 and RAID 1.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
