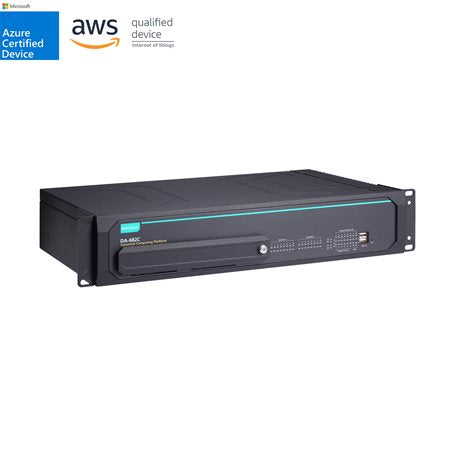

Moxa DA-682C-KL5-H-T | DA-682C 2U Rackmount Industrial Computer, Core i5-7300U, 6 GbE, -40 to 70°C

Authorised Moxa Partner

SKU:DA-682C-KL5-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL5-H-T is a 2U rackmount industrial computer built on a 7th Gen Intel Core i5-7300U processor, designed for power substation automation and other demanding rackmount deployments. This single power input (-H) model offers wide temperature operation from -40 to 70°C (-T), dual HDMI outputs, six Gigabit LAN ports and two RS-232/422/485 serial ports.

With two hot-swappable 2.5-inch drive trays, an mSATA slot and Intel RST RAID 0/1 support, it provides flexible, resilient storage. Two expansion module slots allow additional LAN or serial connectivity, and compliance with IEC 61850-3, IEEE 1613 and IEC 60255 makes it suited to utility and substation environments. It supports Windows 10 IoT Enterprise LTSC 2019 and popular Linux distributions.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- 7th Generation Intel Core i5 processing performance
- Two hot-swappable 2.5-inch HDD/SSD trays with RAID 0/1 support
- Modular design with two independent expansion slots
- Wide-temperature operation from -40 to 70°C
- Six Gigabit LAN ports for segmented or redundant networks
- Dual HDMI outputs for multi-display setups
- Supports Windows 10 IoT Enterprise LTSC 2019 and Linux (Debian, Ubuntu, RedHat, CentOS)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-7300U (2C/4T, 2.6 GHz, up to 3.5 GHz, 3M cache)
- Graphics: Intel HD Graphics 630, 2 x HDMI
- Memory: 2 x SODIMM DDR4 slots, up to 32 GB (2133 MHz)
- Storage: 2 x hot-swappable 2.5-inch HDD/SSD trays, 1 x mSATA slot
- RAID: Intel RST RAID 0/1
- Network: 6 x 10/100/1000 Mbps Gigabit LAN ports
- Serial: 2 x RS-232/422/485 ports
- I/O: 2 x PS/2, 6 DI / 2 DO
- Expansion: 2 module slots (e.g. DN-LN04-RJ 4-port LAN, DN-SP08-I 8-port serial)
- Operating temperature: -40 to 70°C
- Form factor: 2U 19-inch rackmount, metal housing
- Compliance: IEC 61850-3, IEEE 1613, IEC 60255

FAQs

Q: What does the -H and -T in DA-682C-KL5-H-T mean?
A: The -H indicates a single power input model and the -T indicates wide temperature operation from -40 to 70°C.

Q: What expansion options does the DA-682C-KL5-H-T support?
A: It has two module slots that accept expansion modules such as the DN-LN04-RJ 4-port LAN module and the DN-SP08-I 8-port serial module.

Q: How much memory and storage can it hold?
A: It has two SODIMM DDR4 slots supporting up to 32 GB, two hot-swappable 2.5-inch HDD/SSD trays and one mSATA slot, with Intel RST RAID 0/1 support.

Q: Which operating systems are supported?
A: It supports Windows 10 IoT Enterprise LTSC 2019 and Linux distributions including Debian, Ubuntu, RedHat and CentOS.

Q: Is it suitable for power substation use?
A: Yes. It complies with IEC 61850-3, IEEE 1613 and IEC 60255, which are the standards commonly required for substation automation equipment.

Q: How many network and serial ports does it provide?
A: It provides six 10/100/1000 Mbps Gigabit LAN ports and two software-selectable RS-232/422/485 serial ports, with more available through expansion modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
