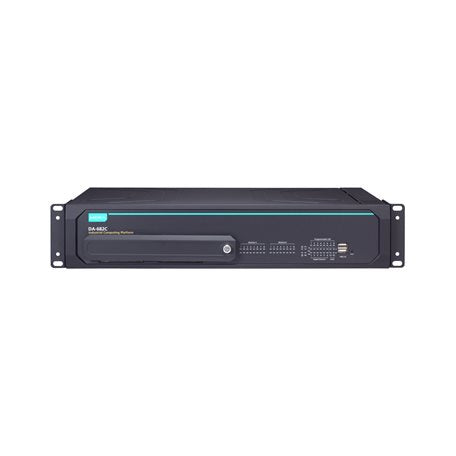

Moxa DA-682C-KL3-HH-T | DA-682C 2U Rackmount Embedded Computer, Core i3-7100U, -40 to 70°C

Authorised Moxa Partner

SKU:DA-682C-KL3-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DA-682C-KL3-HH-T is a 2U 19-inch rackmount x86 embedded computer built for power substation automation. It is powered by a 7th Gen Intel Core i3-7100U processor and supports dual redundant 100 to 240 VAC/VDC power inputs, with a wide operating temperature range of -40 to 70°C. This barebones configuration ships without RAM, SSD or operating system, letting integrators specify their own memory, storage and software.

The computer complies with IEC 61850-3, IEEE 1613 and IEC 60255, and also meets EN 50121-4 for railway applications. Two optional expansion module slots accept 8-port RS-232/422/485 or 4-port Gigabit LAN modules, and two hot-swappable 2.5-inch drive trays support RAID 0/1 for resilient data storage in demanding utility and industrial environments.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- Fanless design with 7th Gen Intel Core processor
- Two hot-swappable 2.5-inch HDD/SSD trays with Intel RST RAID 0/1 support
- Redundant power supplies (100-240 VAC/VDC)
- Modular design with two independent expansion slots for serial or LAN modules
- EN 50121-4 compliant for railway applications
- Wide operating temperature range of -40 to 70°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 7th Gen Intel Core i3-7100U
- Form factor: 2U 19-inch rackmount
- Memory: 2 x DDR4 2133 MHz DIMM slots (288-pin), up to 32 GB, no RAM included
- Storage: 2 x hot-swappable 2.5-inch SATA HDD/SSD trays plus 1 x mSATA, no SSD included
- Display: 2 x HDMI
- LAN: 6 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (software selectable)
- I/O: 6 x DI, 2 x DO, 5 x USB
- Expansion: 2 x optional expansion module slots (8-port RS-232/422/485 or 4-port Gigabit LAN modules)
- Power: dual redundant 100 to 240 VAC/VDC inputs
- Operating temperature: -40 to 70°C
- Compliance: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, CE, FCC Class A, RoHS
- Operating system: none included

FAQs

Q: Does the DA-682C-KL3-HH-T include RAM, storage or an operating system?
A: No. This model ships without RAM, SSD or operating system. It has two DDR4 2133 MHz DIMM slots supporting up to 32 GB, two hot-swappable 2.5-inch SATA drive trays and one mSATA slot for your own memory and storage.

Q: What standards does this computer comply with?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway applications. It also carries CE, FCC Class A and RoHS compliance.

Q: What expansion options are available?
A: The two expansion slots accept optional 8-port RS-232/422/485 serial modules or 4-port Gigabit LAN modules, allowing you to add serial or network connectivity as required.

Q: Does it support redundant power?
A: Yes. It has dual redundant power inputs that each accept 100 to 240 VAC/VDC.

Q: What temperature range can it operate in?
A: As a -T model, it is rated for operation from -40 to 70°C, suitable for harsh substation and industrial environments.

Q: Does it support RAID?
A: Yes. The two hot-swappable 2.5-inch drive trays support Intel RST RAID 0 and RAID 1 configurations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
