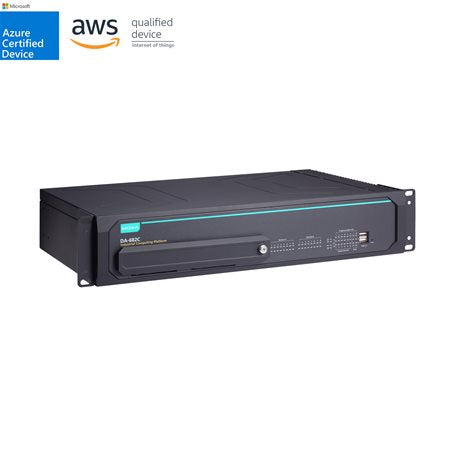

Moxa DA-682C-KL3-H-T | DA-682C 2U Rackmount Computer, Core i3-7100U, -40 to 70°C

Authorised Moxa Partner

SKU:DA-682C-KL3-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL3-H-T is a rugged 2U, 19-inch x86 rackmount computer built on a 7th Gen Intel Core i3-7100U processor and designed for an operating range of -40 to 70°C. This variant includes a single 100-240 VAC/VDC power input and is aimed at power substation automation and rail wayside deployments, with compliance to IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4.

Six Gigabit LAN ports, two HDMI outputs and two software-selectable RS-232/422/485 serial ports cover the connectivity needs of industrial control and data acquisition systems. Two hot-swappable 2.5-inch HDD/SSD trays support Intel RST RAID 0/1, and two expansion slots accept optional serial or LAN modules sold separately. Supported operating systems include Windows 10 Embedded IoT Enterprise 2019 LTSC 64-bit and Linux Debian 9, available by CTOS.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Core i3 processor with Intel HD Graphics 630
- DDR4 memory support up to 32 GB
- Two hot-swappable 2.5-inch HDD/SSD trays with Intel RST RAID 0/1 support
- Modular design with two independent expansion slots for 8-port RS-232/422/485 or 4-port Gigabit LAN modules
- Wide operating temperature range of -40 to 70°C
- Six Gigabit LAN ports for network segmentation and redundancy
- Programmable LED indicators for system status

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i3-7100U (3M Cache, 2.4 GHz)
- Graphics: Intel HD Graphics 630
- Memory: 2 x SODIMM DDR4 slots, 32 GB maximum (16 GB per module, 2133 MHz)
- Storage: 2 x hot-swappable 2.5-inch HDD/SSD slots
- Ethernet: 6 x 10/100/1000 Mbps RJ45 ports
- Serial: 2 x RS-232/422/485 ports, software-selectable, terminal block, 300 bps to 115.2 kbps
- Video output: 2 x HDMI (type A)
- USB: 3 x USB 2.0 and 3 x USB 3.0 type-A hosts
- Expansion: 2 slots (modules sold separately)
- Power input: 100-240 VAC/VDC, single power supply, 900 mA
- Operating temperature: -40 to 70°C (-40 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% non-condensing
- Dimensions (without ears): 440 x 282 x 88 mm
- Weight: 9,900 g
- Housing: Metal, 19-inch rack mounting
- Certifications: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, UL 60950-1, UL 62368-1, FCC Part 15B Class A, RoHS, CRoHS, WEEE
- MTBF: 365,750 hrs (Telcordia SR332)
- Supported OS: Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9 (by CTOS)

FAQs

Q: Which power input does the DA-682C-KL3-H-T use?
A: This variant has a single power supply with a 100-240 VAC/VDC input, as indicated by the -H suffix.

Q: What operating temperature range does this model support?
A: It operates from -40 to 70°C (-40 to 158°F), making it suitable for unconditioned cabinets and harsh industrial sites.

Q: Which industry standards does it comply with?
A: It is designed for power substation automation under IEC 61850-3, IEEE 1613 and IEC 60255, and for railway wayside use under EN 50121-4.

Q: Can I add more serial or LAN ports?
A: Yes. Two expansion slots accept optional 8-port RS-232/422/485 or 4-port Gigabit LAN modules, which are sold separately.

Q: Does it support RAID storage?
A: Yes. Two hot-swappable 2.5-inch HDD/SSD trays support Intel RST RAID 0/1.

Q: Which operating systems are supported?
A: Windows 10 Embedded IoT Enterprise 2019 LTSC 64-bit and Linux Debian 9 are supported, with the OS available by CTOS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
