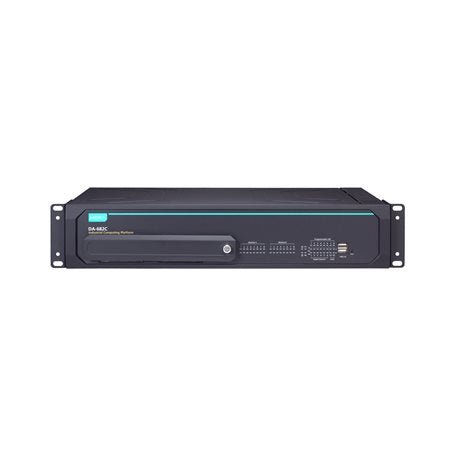

Moxa DA-682C-KL1-HH-T | DA-682C 2U Rackmount Computer, Celeron 3965U, 6x GbE

Authorised Moxa Partner

SKU:DA-682C-KL1-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-682C-KL1-HH-T is a 2U, 19-inch rackmount industrial computer built on an Intel Celeron 3965U processor (2.2 GHz) with 6 Gigabit Ethernet LAN ports and 2 HDMI outputs. Designed for IEC 61850-3 substation automation and railway wayside applications, it runs across a -40 to 70°C temperature range and is powered by a redundant 100-240 VAC/VDC supply. This model is supplied without RAM, SSD or operating system, so you can specify the memory, storage and OS to suit your deployment.

Two hot-swappable 2.5-inch drive trays and an mSATA slot provide flexible storage with RAID 0/1 support, while two DDR4 SODIMM slots accept up to 32 GB of memory. Two independent expansion slots take optional LAN or serial modules such as the DN-LN04-RJ and DN-SP08-I, allowing the platform to be tailored to power utility, rail and other demanding industrial environments.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- Redundant power supply accepting 100 to 240 VAC/VDC
- Two hot-swappable 2.5-inch HDD/SSD trays with RAID 0/1 support
- Modular design with two independent expansion slots for LAN or serial modules
- Wide -40 to 70°C operating temperature range
- Six Gigabit Ethernet ports and dual HDMI outputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 3965U, 2 cores/2 threads, 2.2 GHz, 2M cache
- Memory: 2 x DDR4 SODIMM slots, up to 32 GB (RAM not included)
- Graphics: Intel HD Graphics 630, 2 x HDMI video outputs
- Storage: 2 x hot-swappable 2.5-inch HDD/SSD slots and 1 x mSATA slot (storage not included)
- RAID: Intel RST RAID 0/1
- Network: 6 x Gigabit Ethernet LAN ports
- Serial: 2 x software-selectable RS-232/422/485 ports
- I/O: 6 digital inputs, 2 digital outputs, 2 x PS/2, USB ports
- Expansion: 2 module slots for LAN or serial modules
- Power: dual redundant power supply, 100-240 VAC/VDC
- Operating temperature: -40 to 70°C
- Form factor: 2U, 19-inch rackmount, rugged enclosure
- Supplied without RAM, SSD or operating system

FAQs

Q: Does the DA-682C-KL1-HH-T include RAM, storage and an operating system?
A: No. This model is supplied without RAM, SSD or operating system. It has 2 DDR4 SODIMM slots supporting up to 32 GB, two hot-swappable 2.5-inch drive trays and an mSATA slot.

Q: What expansion modules can be fitted?
A: The two module slots accept Moxa modules such as the DN-LN04-RJ 4-port LAN module and the DN-SP08-I 8-port serial module.

Q: What industry standards does it comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: What is the operating temperature range?
A: The DA-682C-KL1-HH-T is rated for operation from -40 to 70°C.

Q: Does it support RAID?
A: Yes. The Intel RST controller supports RAID 0 and RAID 1 across the two hot-swappable 2.5-inch storage trays.

Q: Does the Celeron 3965U support Hyper-Threading?
A: No. The KL1 model uses a 2-core, 2-thread Intel Celeron 3965U and does not support Hyper-Threading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
