Moxa DA-682C-KL1-H-T | DA-682C Rackmount Fanless Computer, Celeron 3965U, 6 GbE, -40 to 70C

Authorised Moxa Partner

SKU:DA-682C-KL1-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

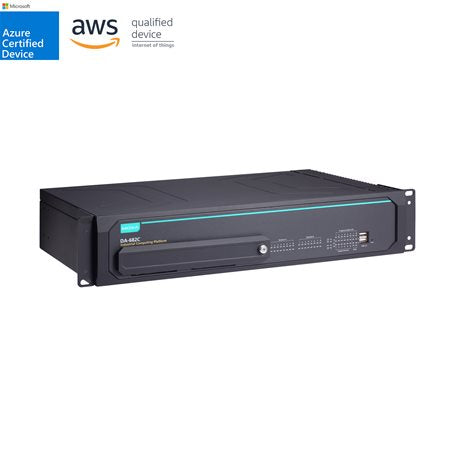

The Moxa DA-682C-KL1-H-T is a 2U rackmount fanless x86 embedded computer for power substation automation, built on an Intel Celeron 3965U processor with a single power supply and a wide -40 to 70°C operating range. It delivers 6 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs for dependable connectivity in demanding utility and industrial environments.

Two hot-swappable 2.5-inch HDD/SSD trays with Intel RST RAID 0/1 support, an mSATA slot and two SODIMM DDR4 slots (up to 32 GB) provide flexible storage and memory. Two expansion slots accept serial or Gigabit LAN modules, and the DA-682C family complies with IEC 61850-3, IEEE 1613 and IEC 60255 for substation use, as well as EN 50121-4 for railway wayside applications.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation systems
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel Core processor platform
- Two hot-swappable 2.5-inch HDD/SSD storage trays
- Modular design with two independent expansion slots
- Fanless design for reliable operation in harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Celeron 3965U processor (2C/2T, 2.2 GHz, 2M cache)
- 2 x HDMI display outputs
- 2 x PS/2 ports
- 6 x Gigabit Ethernet ports
- 2 x RS-232/422/485 3-in-1 serial ports
- 6 x digital inputs, 2 x digital outputs
- 1 x mSATA slot
- 2 x hot-swappable 2.5-inch HDD/SSD slots with Intel RST RAID 0/1 support
- 2 x SODIMM DDR4 slots, up to 32 GB (2133 MHz)
- 2 expansion slots (e.g. 8-port RS-232/422/485 module, 4-port Gigabit LAN module)
- Single power supply (100 to 240 VAC/VDC)
- Operating temperature -40 to 70°C
- 2U rackmount, fanless design

FAQs

Q: Which standards does the DA-682C-KL1-H-T comply with?
A: The DA-682C family complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: What operating temperature range does this model support?
A: The DA-682C-KL1-H-T operates across a wide -40 to 70°C temperature range, with a fanless design suited to harsh environments.

Q: Does it support RAID storage?
A: Yes. It has two hot-swappable 2.5-inch HDD/SSD slots with Intel RST RAID 0/1 support, plus an mSATA slot.

Q: How much memory can be installed?
A: It has two SODIMM DDR4 slots supporting up to 32 GB at 2133 MHz.

Q: Can I add more serial or network ports?
A: Yes. Two expansion slots accept modules such as an 8-port RS-232/422/485 module or a 4-port Gigabit LAN module.

Q: Does this model have redundant power?
A: No. The DA-682C-KL1-H-T has a single power supply input accepting 100 to 240 VAC/VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
