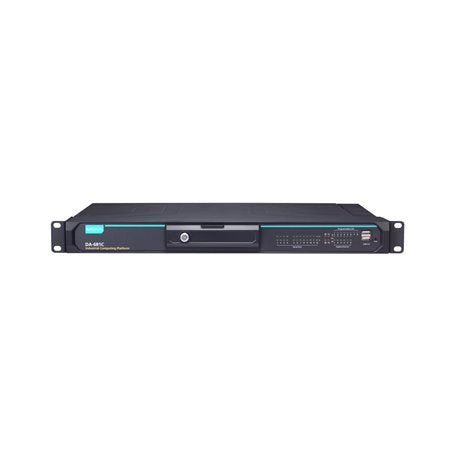

Moxa DA-681C-T(CTO) | DA-681C 1U Rackmount Computer, Celeron 3965U, -40 to 70°C

Authorised Moxa Partner

SKU:DA-681C-T(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-681C-T (CTO) is a DA-681C Series 1U rackmount x86 industrial computer built on an Intel Celeron 3965U processor, designed for power substation automation and railway wayside deployments. This configure-to-order version has a single 100-240 VAC/VDC power input and an operating range of -40 to 70°C, with RAM, storage and operating system specified separately.

Connectivity includes 6 Gigabit Ethernet ports, 12 serial ports (2 x RS-232/422/485 and 10 x RS-485 2-wire), dual HDMI outputs and a mix of USB 2.0 and USB 3.0 ports. Two SODIMM DDR4 slots support up to 32 GB, with a 2.5-inch HDD/SSD slot and an mSATA slot for storage. TPM v2.0 and UEFI Secure Boot support secure deployments.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel processor
- DDR4 memory, up to 32 GB
- 6 Gigabit Ethernet ports and 12 isolated serial ports
- Dual HDMI display outputs
- 2.5-inch HDD/SSD slot plus mSATA slot for storage expansion
- Wide operating temperature range of -40 to 70°C
- TPM v2.0 and UEFI Secure Boot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Celeron 3965U processor, 2M cache, 2.2 GHz
- Intel HD Graphics 630
- 2 x SODIMM DDR4 slots, up to 32 GB, 2400 MHz
- Storage: 1 x 2.5-inch HDD/SSD slot, 1 x mSATA slot
- 6 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 (DB9 male, software-selectable) and 10 x RS-485 2-wire (terminal block)
- 2 x HDMI (type A)
- 3 x USB 2.0 and 3 x USB 3.0 (type-A)
- 6 digital inputs and 2 digital outputs
- Single power input, 100-240 VAC/VDC
- Operating temperature -40 to 70°C
- 1U 19-inch rackmount, 440 x 316 x 44 mm, 9 kg
- TPM v2.0 and UEFI Secure Boot
- Supported OS available via CTOS: Windows 10 IoT Enterprise LTSC 2019 Value (64-bit), Linux Debian 9

FAQs

Q: Does the DA-681C-T (CTO) include RAM, storage or an operating system?
A: No. This configure-to-order model ships without RAM, SSD or OS, so memory, storage and operating system are specified separately.

Q: How much memory does the DA-681C-T support?
A: It has 2 SODIMM DDR4 slots supporting up to 32 GB in total, with each module supporting 2400 MHz and up to 16 GB.

Q: What operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2019 Value (64-bit) and Linux Debian 9 are available through CTOS.

Q: What serial and network connectivity does it offer?
A: It provides 6 x 10/100/1000 Mbps RJ45 Ethernet ports, 2 software-selectable RS-232/422/485 DB9 ports and 10 RS-485 2-wire terminal block ports.

Q: What industry standards does the DA-681C series meet?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substations, and EN 50121-4 for railway wayside applications.

Q: What power input does this model use?
A: It has a single power supply accepting 100 to 240 VAC/VDC.
