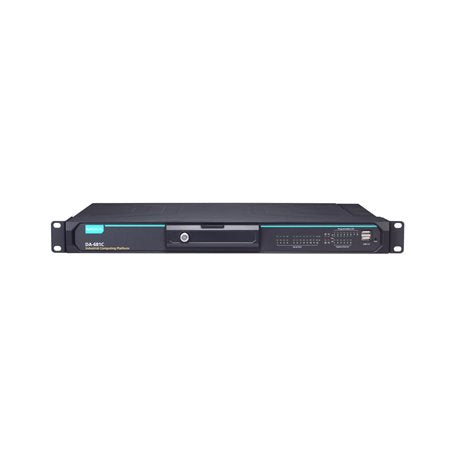

Moxa DA-681C-KL1-H-T | DA-681C 1U Rackmount Computer, Celeron 3965U, -40 to 70°C

Authorised Moxa Partner

SKU:DA-681C-KL1-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-681C-KL1-H-T is a fanless 1U x86 rackmount industrial computer built on a 7th Gen Intel Celeron 3965U processor. Designed for IEC 61850-3 power substation automation and railway wayside applications, this model has a single 100 to 240 VAC/VDC power supply, a -40 to 70°C operating temperature range, and ships without RAM, storage or operating system so you can specify your own configuration.

Connectivity includes 6 Gigabit Ethernet ports, 2 RS-232/422/485 and 10 RS-485 serial ports, 6 digital inputs, 2 digital outputs and dual HDMI outputs. It has one mSATA slot and one 2.5 inch SATA drive bay, a DDR4 memory slot supporting up to 32 GB, and supports Windows 10 IoT and Linux (Debian).

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- Fanless 1U design with -40 to 70°C wide-temperature operation
- 7th Gen Intel processor platform with DDR4 memory up to 32 GB
- Isolated serial ports for reliable industrial connectivity
- Supports Windows 10 IoT and Linux (Debian)
- Barebone configuration lets you choose your own RAM, storage and OS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 3965U, 2 cores / 2 threads, 2.2 GHz (7th Gen)
- Form factor: 1U rackmount, fanless
- Display outputs: 2 x HDMI
- LAN: 6 x Gigabit Ethernet
- Serial: 2 x RS-232/422/485 (3-in-1) and 10 x RS-485 (2-wire)
- Digital I/O: 6 x digital inputs, 2 x digital outputs
- Other interfaces: 2 x PS/2, USB 2.0 / USB 3.0 ports
- Storage: 1 x mSATA slot and 1 x 2.5 inch SATA HDD/SSD slot
- Memory: DDR4 slot, up to 32 GB (RAM not included)
- Power: single supply, 100 to 240 VAC/VDC
- Operating temperature: -40 to 70°C
- Supplied without RAM, mSATA/SSD and operating system

FAQs

Q: Does the DA-681C-KL1-H-T include RAM, storage or an operating system?
A: No. This model is supplied without RAM, mSATA/SSD storage and an operating system. You add your own DDR4 memory (up to 32 GB), storage and OS.

Q: What operating systems does the DA-681C-KL1-H-T support?
A: It supports Windows 10 IoT and Linux (Debian).

Q: What industry standards does this computer comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: What operating temperature range does it support?
A: The DA-681C-KL1-H-T operates from -40 to 70°C, suited to harsh substation and trackside environments.

Q: How many serial and network ports does it have?
A: It provides 6 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports and 10 RS-485 serial ports.

Q: Does it have a single or redundant power supply?
A: This model has a single power supply accepting 100 to 240 VAC/VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
