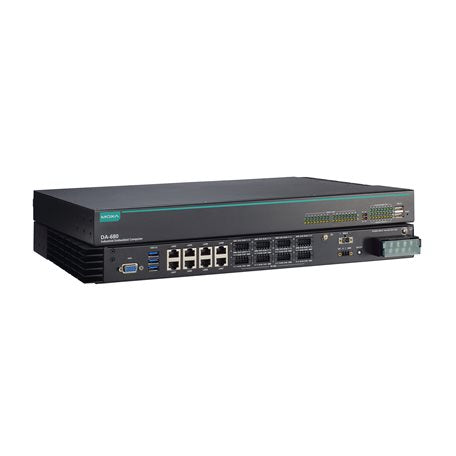

Moxa DA-680-I-8-WL3-HH | DA-680 1U Rack Computer, Core i3-8145UE, 8x RS-485, Dual Power

Authorised Moxa Partner

SKU:DA-680-I-8-WL3-HH

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DA-680 1U industrial rack computer is built around an Intel Core i3-8145UE (Whiskey Lake) processor with Intel UHD Graphics 620 and is designed for power substation automation. This model provides 8 x Gigabit Ethernet ports, 8 isolated 2-wire/4-wire RS-485 serial ports and dual 100-240 VAC/VDC power inputs, with an operating temperature range of -25 to 55°C. It ships without RAM, mSATA storage or an operating system, so the memory and storage configuration can be matched to your deployment.

IRIG-B time synchronisation, TPM v2.0 and a metal 19-inch rack-mount housing suit demanding utility and edge data acquisition environments. Storage expansion is available through the 2.5-inch HDD/SSD slot and the mSATA slot, and compliance with IEC 61850-3, IEEE 1613 and IEC 60255 supports use in substation applications.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- Dual-power model with 100-240 VAC/VDC power inputs
- Eight isolated RS-485 serial ports for connecting field devices
- IRIG-B time synchronisation for accurate timestamping
- Storage expansion via 2.5-inch HDD/SSD and mSATA slots for edge data acquisition
- TPM v2.0 for hardware-based security
- Wide -25 to 55°C operating temperature range
- UL 62368-1, IEC 62368-1, CISPR 32, FCC Part 15B Class A and EN 55032/35 certified
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-8145UE Whiskey Lake
- Graphics: Intel UHD Graphics 620
- Memory: 1 x DDR4 (non-ECC) slot, supplied without RAM
- Storage: 1 x 2.5-inch HDD/SSD slot, 1 x mSATA slot, supplied without mSATA
- Network: 8 x Gigabit Ethernet ports
- Serial: 8 x 2-wire/4-wire RS-485 (terminal block), isolated
- Display: 1 x VGA port
- USB: 5 x USB ports
- Time synchronisation: IRIG-B (terminal block)
- Security: TPM v2.0
- Power input: 100-240 VAC 50/60 Hz, 1.05 A max; 100-240 VDC, 0.7 A max; dual power
- Operating temperature: -25 to 55°C
- Dimensions (without ears): 440 x 335.5 x 44 mm
- Weight: 4659.5 g
- Housing: metal, 19-inch rack mounting, 1U
- MTBF: 238,154 hrs (Telcordia SR332)
- Operating system: not included

FAQs

Q: Does the DA-680-I-8-WL3-HH include RAM, storage or an operating system?
A: No. This model is supplied without RAM, mSATA storage or an operating system. It has a DDR4 memory slot, a 2.5-inch HDD/SSD slot and an mSATA slot for you to configure.

Q: How many serial ports does this model have?
A: It provides 8 isolated 2-wire/4-wire RS-485 ports on terminal block connectors.

Q: What power inputs does the dual-power model support?
A: It accepts 100-240 VAC at 50/60 Hz and 100-240 VDC, with dual power inputs for redundancy.

Q: Is the DA-680-I-8-WL3-HH suited to substation applications?
A: Yes. It is designed for power substation automation and complies with IEC 61850-3, IEEE 1613 and IEC 60255, with IRIG-B time synchronisation built in.

Q: What is the operating temperature range?
A: This model operates from -25 to 55°C.

Q: What processor and networking does it have?
A: It uses an Intel Core i3-8145UE (Whiskey Lake) processor with Intel UHD Graphics 620 and provides 8 x Gigabit Ethernet ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
