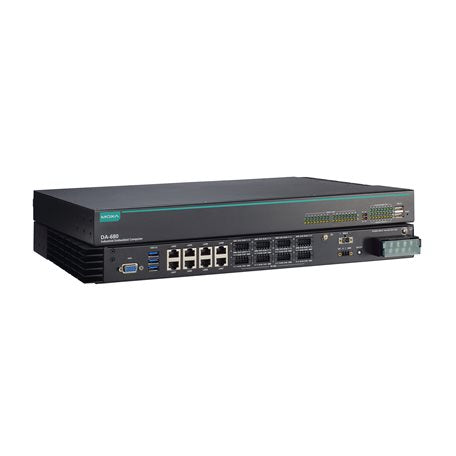

Moxa DA-680-I-8-WL3-H | DA-680 1U Rackmount Computer, Core i3, 8x RS-485, -25 to 55C, No RAM, 8x GbE

Authorised Moxa Partner

SKU:DA-680-I-8-WL3-H

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-680-I-8-WL3-H is an IEC 61850-3 1U x86 rackmount computer built on an 8th Gen Intel Core i3-8145UE processor. It combines 8 Gigabit Ethernet ports with 8 RS-485 serial ports, VGA output and a single 100-240 VAC/VDC power input, and operates across a -25 to 55C temperature range. This variant ships without RAM, mSATA storage or an operating system, so it can be configured to suit your deployment.

With IEEE 1613 and IEC 60255 compliance, IRIG-B time synchronisation and TPM v2.0, it is well suited to power substation automation, protection relay and industrial control applications. The metal 1U housing mounts in a standard 19-inch rack, with one 2.5-inch drive bay and one mSATA slot available for storage.

Features

- IEC 61850-3 and IEEE 1613 compliant for power substation applications
- IEC 60255 compliant for protection relay applications
- Shock tested to IEC 61850-3 Edition 2.0, IEC 60068-2-27 and IEC 60255-21-2
- Safety certified to UL 62368-1 and IEC 62368-1
- Eight Gigabit Ethernet and eight RS-485 ports in a compact 1U chassis
- Wide -25 to 55C operating temperature range
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-8145UE Whiskey Lake processor
- Graphics: Intel UHD Graphics 620, 1 x VGA port
- Memory: 1 x DDR4 (non-ECC) slot, 32 GB maximum, supplied without RAM
- Storage: 1 x 2.5-inch HDD/SSD slot and 1 x mSATA slot, supplied without mSATA and OS
- Networking: 8 x Gigabit Ethernet ports
- Serial: 8 x RS-485 2-wire/4-wire ports
- I/O: 2 x digital outputs, 3 x USB 3.0, 2 x USB 2.0
- IRIG-B time synchronisation (terminal block)
- Security: TPM v2.0
- Power: single 100 to 240 VAC/VDC input
- Operating temperature: -25 to 55C (-13 to 131F)
- Storage temperature: -40 to 85C
- Humidity: 5 to 95% (non-condensing)
- Dimensions (without ears): 440 x 335.5 x 44 mm
- Weight: 4659.5 g
- Mounting: 19-inch rack, metal housing, 1U
- MTBF: 238,154 hrs (Telcordia SR-332)

FAQs

Q: Does the DA-680-I-8-WL3-H include RAM, storage and an operating system?
A: No. This variant is supplied without RAM, mSATA storage and an operating system. It has one DDR4 non-ECC slot supporting up to 32 GB, plus a 2.5-inch drive slot and an mSATA slot.

Q: What power input does this model use?
A: It has a single 100 to 240 VAC/VDC power input.

Q: What operating temperature range is supported?
A: The DA-680-I-8-WL3-H operates from -25 to 55C (-13 to 131F) in 5 to 95% non-condensing humidity.

Q: Is it suitable for power substation use?
A: Yes. It is compliant with IEC 61850-3 and IEEE 1613 for substation applications, and IEC 60255 for protection relay applications.

Q: How many network and serial ports does it provide?
A: It provides 8 Gigabit Ethernet ports and 8 RS-485 serial ports that support 2-wire and 4-wire operation.

Q: What processor and video output does it have?
A: It uses an 8th Gen Intel Core i3-8145UE processor with Intel UHD Graphics 620 and one VGA output.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
