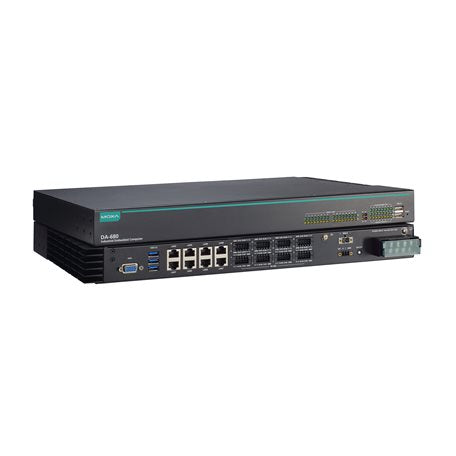

Moxa DA-680-I-16-WL3-HH | DA-680 1U Rackmount Computer, Core i3-8145UE, 16x RS-485, Dual Power

Authorised Moxa Partner

SKU:DA-680-I-16-WL3-HH

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-680-I-16-WL3-HH is a fanless 1U 19-inch rackmount embedded computer built around an 8th Gen Intel Core i3-8145UE (Whiskey Lake) processor. This SKU provides 16 RS-485 serial ports, 8 Gigabit Ethernet ports and dual 100-240V AC/DC power inputs, making it well suited to substation automation and other harsh industrial environments.

The DA-680 complies with IEC 61850-3 and IEEE 1613. It offers one 2.5" SATA III drive slot, one mSATA slot, a DDR4 DIMM slot supporting up to 32GB, VGA output, USB ports and TPM 2.0 security. It supports Windows 10 IoT and Linux (CentOS 7.9, Ubuntu 20.04). RAM, mSATA storage and operating system are not included.

Features

- Fanless design for substation and harsh-environment use
- IEC 61850-3 and IEEE 1613 compliant
- Dual redundant power supply inputs
- Isolated RS-485 serial ports for connecting field devices
- TPM 2.0 security support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i3-8145UE (Whiskey Lake) processor
- 1U 19-inch rackmount, fanless
- 8 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 16 x RS-485 serial ports (2-wire/4-wire)
- VGA display output
- USB 3.0 Type-A and USB 2.0 Type-A ports
- 1 x 2.5" SATA III HDD/SSD slot and 1 x mSATA slot
- 1 x 288-pin DDR4 2400 MHz DIMM slot, up to 32GB (RAM not included)
- Dual 100-240V AC/DC power inputs
- TPM 2.0
- Supported OS: Windows 10 IoT, Linux (CentOS 7.9, Ubuntu 20.04)
- Compliance: CE, RoHS, IEC 61850-3, IEEE 1613
- Operating temperature: -25 to 55°C

FAQs

Q: Does the DA-680-I-16-WL3-HH include RAM and storage?
A: No. This model is supplied without RAM, mSATA storage or an operating system. It has one DDR4 DIMM slot supporting up to 32GB, one mSATA slot and one 2.5" SATA III slot.

Q: How many serial ports does this model have?
A: It has 16 RS-485 serial ports supporting 2-wire and 4-wire operation, for connecting multiple field devices.

Q: Is the DA-680-I-16-WL3-HH suitable for substation automation?
A: Yes. It is a fanless design that complies with IEC 61850-3 and IEEE 1613, which are the standards used in power substation environments.

Q: What operating systems are supported?
A: Windows 10 IoT and Linux distributions including CentOS 7.9 and Ubuntu 20.04.

Q: Does it support redundant power?
A: Yes. It has dual 100-240V AC/DC power inputs, allowing a redundant power supply arrangement.

Q: What is the operating temperature range?
A: This model operates from -25 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
